Overview

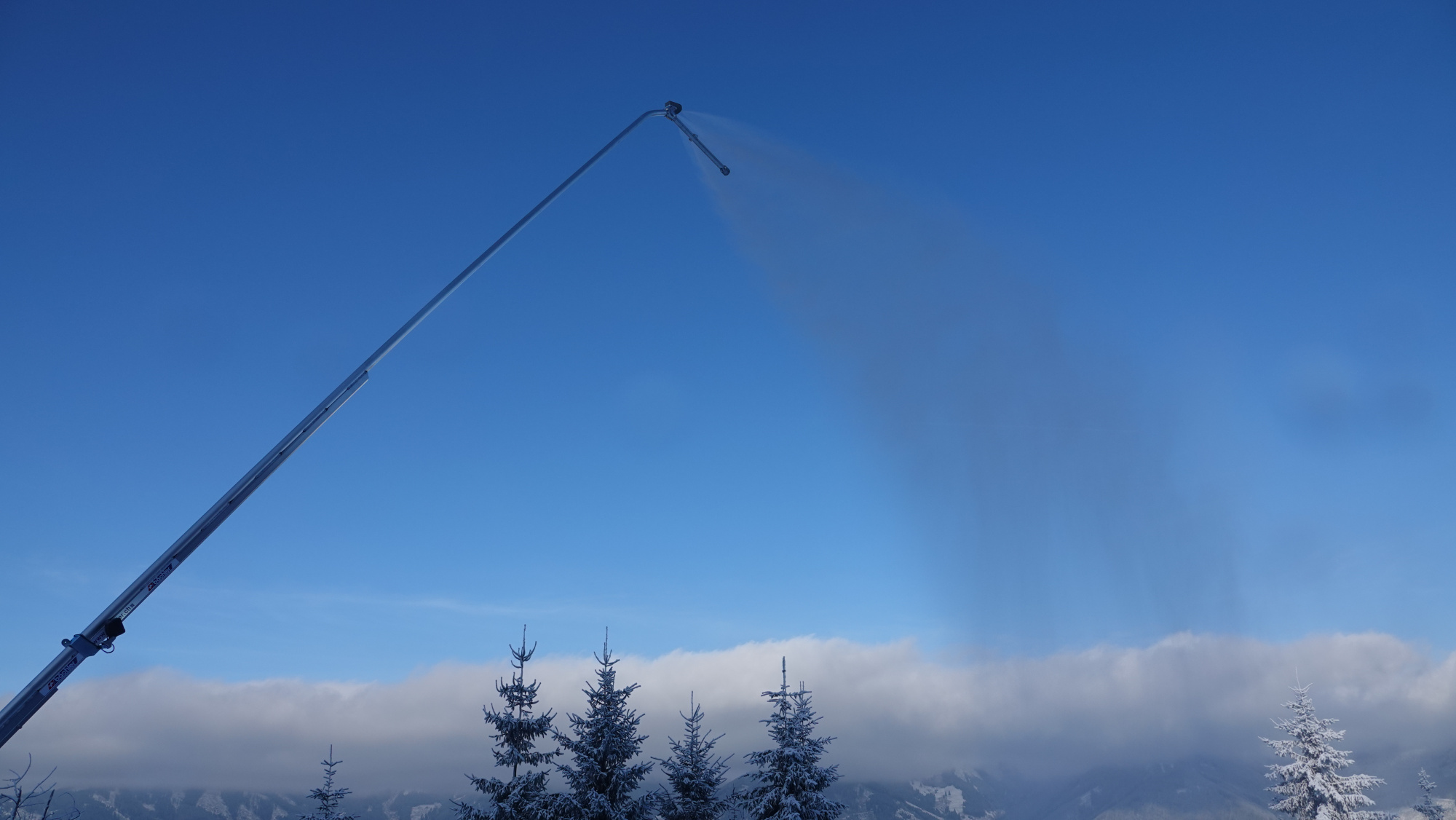

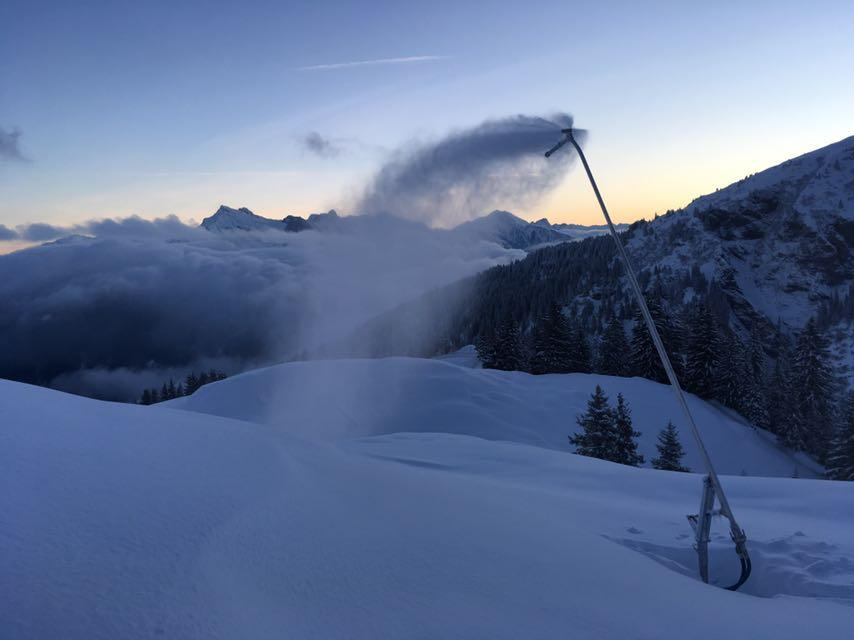

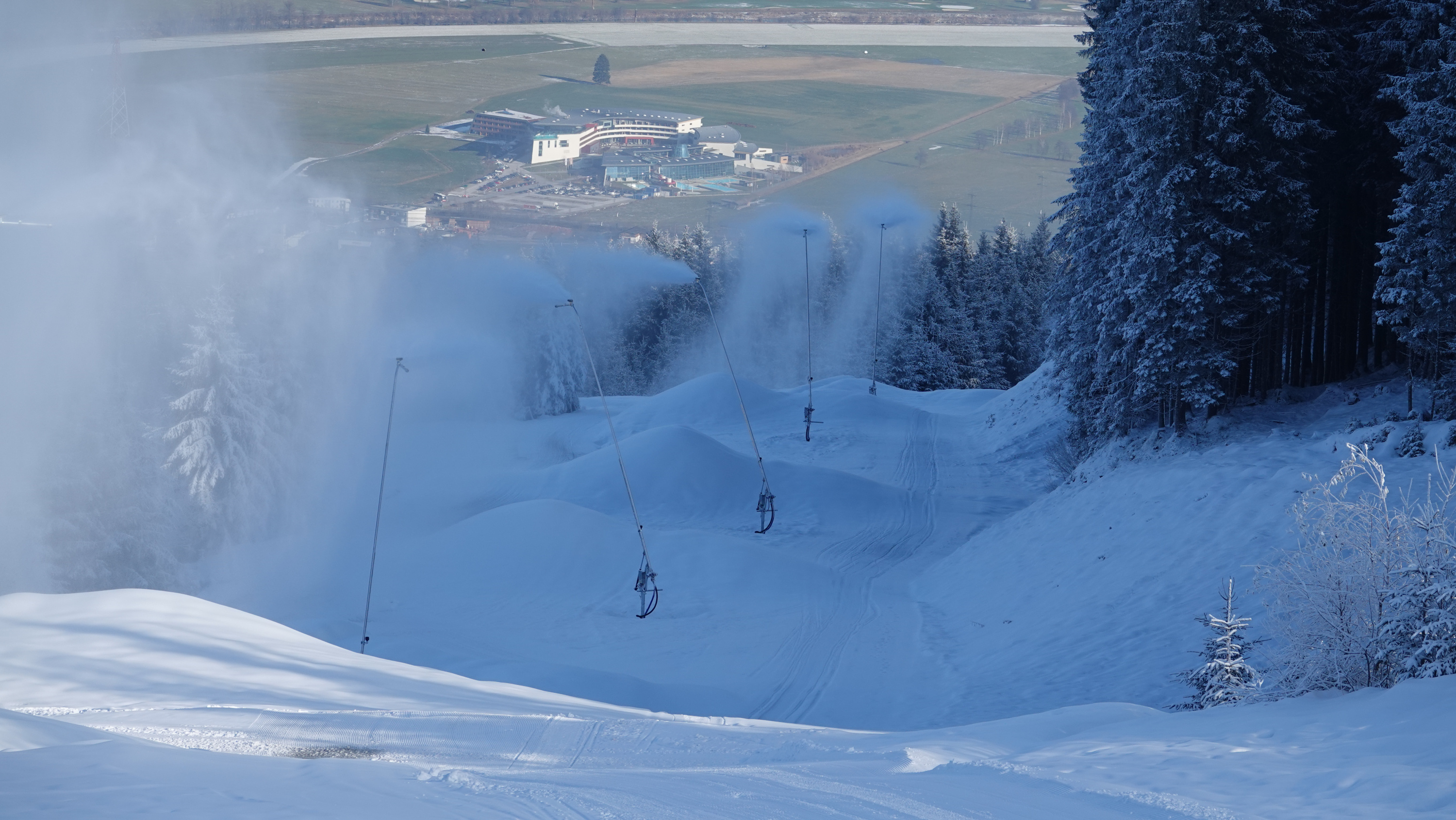

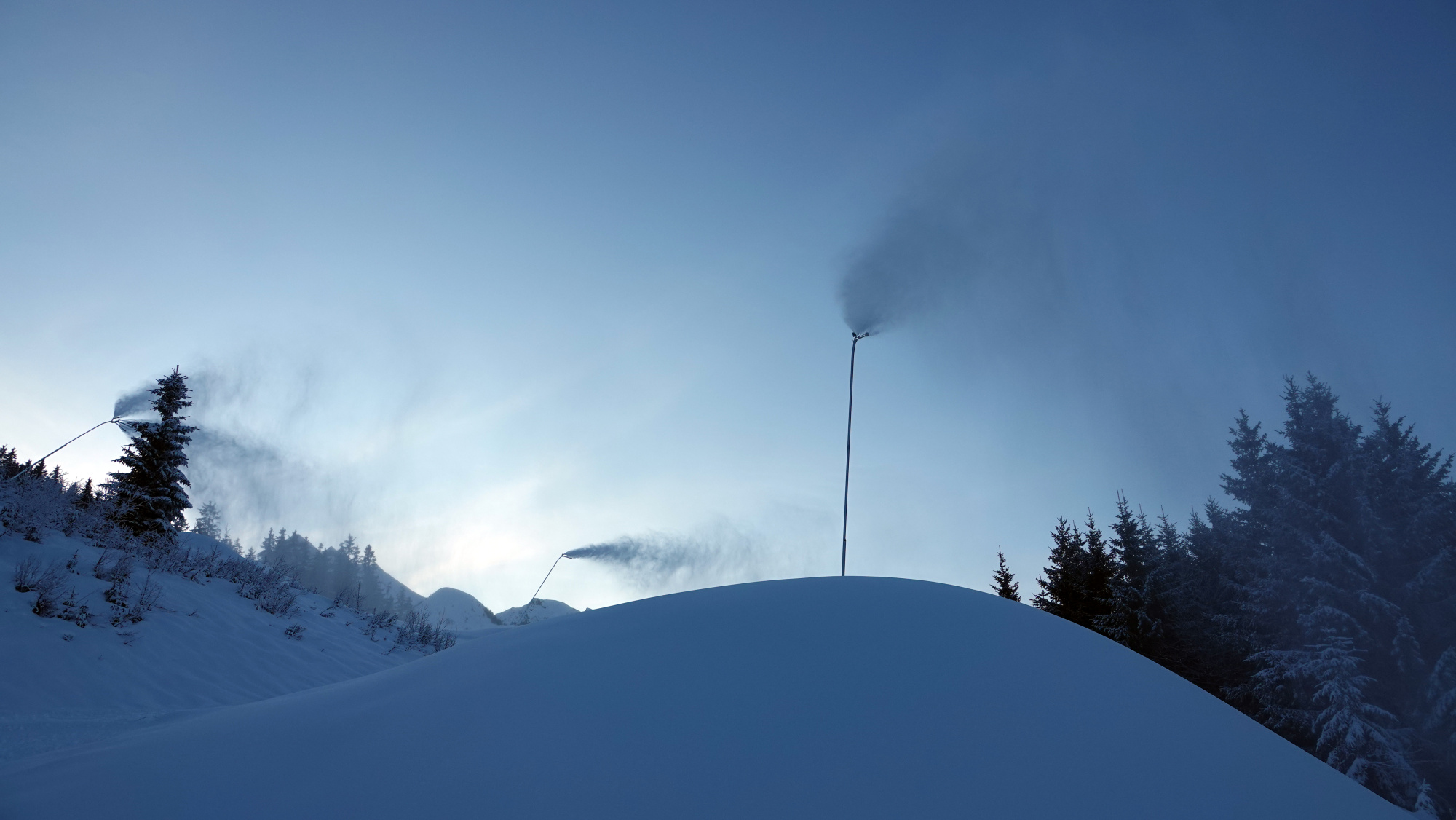

SnoTek ET

The slim one under the fan guns

The combination of the nozzle technology of NESSy and the patented nozzle technology of SnoTek results in throw width like low pressure snow guns and the same amount of snow.

SnoTek ET is based on the established NESSy technology (see datasheet NESSy). The combination of the nozzle technology of NESSy and the patented nozzle technology of SnoTek results in throw width like low pressure snow guns and the same amount of snow. The SnoTek nozzle technology is practically wind-insensible. SnoTek ET has more than 8 different snow steps with which you can always generate the desired snow quality.

  • Modular design
  • High-quality nozzles from MVT micro technologies AG
  • Existing BÄCHLER snowguns can be upgraded easily

Technical data

Lance lengths10m, 8.5m, 7m, 5m
Type of controlmanual, automatic, fully automatic
Snowing levels8
Weight incl. lifting device167 kg (at 10 m Lance length)
Energy requirement0.8 kW (central air), 2.2 kW (Onboard-Compressor)
Air supplymax. 150 Nl/min at 10 bar
Water flow rate30 to 461 l/min
Working pressure20 - 60 bar
Throw10 - 35 m
Noise level61.2 dB at 20 m
Fast change system BTTavailable, for optimized handling
Nozzle assembly3 water-nozzles, 1 V-Jet-Nozzle unite, 6 nucleator-nozzles
Start marginal temperature-1.5° WBT
Maximum performance from-7° WBT
Snowing performance4 up to 62 m³/h
Specific snow weight400 - 450 kg/m³, adjustable
FoundationPit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversioneasily possible, for existing Bachler lances as well for other providers

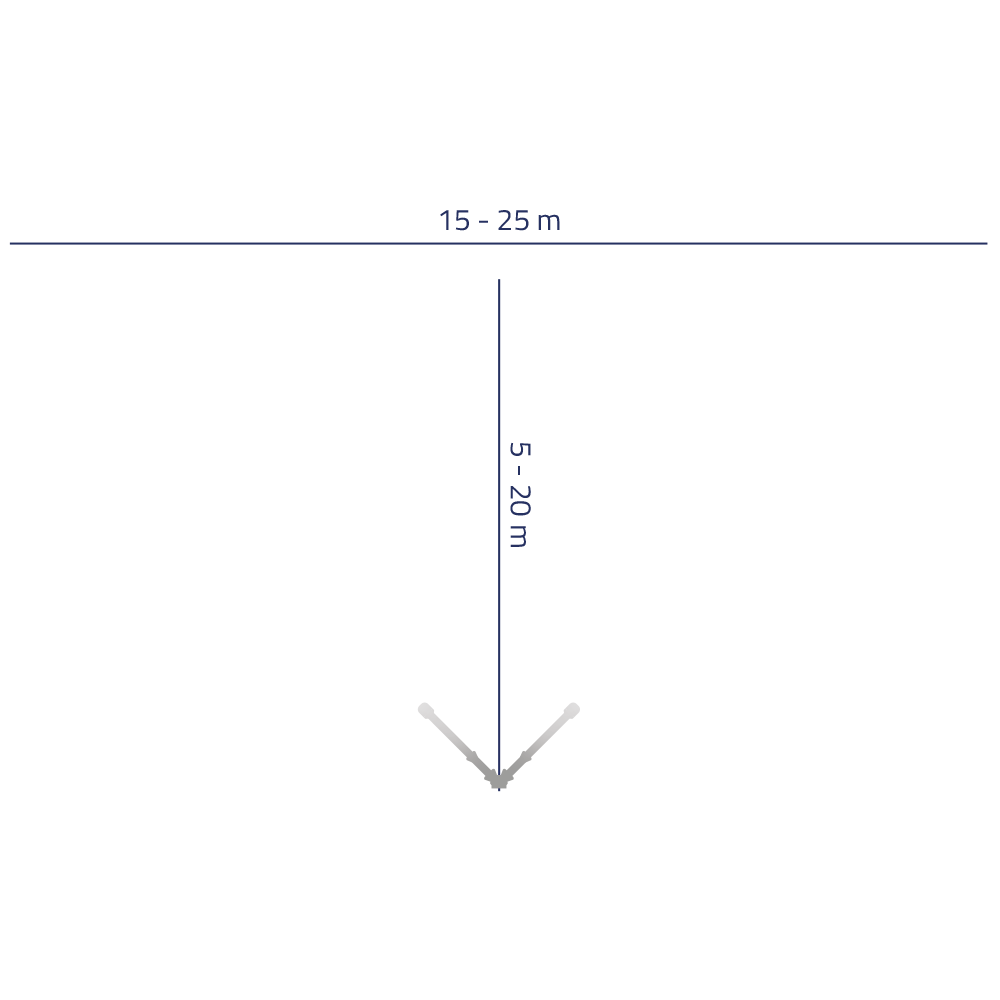

Snow cover map and Snowspider

Baechler Top Track SNOTEK ET 01 Baechler Top Track SNOTEK ET 03 EN

Suitable Supplies

Pit Solutions

The ingenious pit components can be assembled on your demand. Thereby it provides endless opportunities to design the system inexpensive and user-optimised.

Combi-Pitvale

The very compact combi-pitvalve with combined control of water and air in the basic is perfectly suited for use with NESSy/SnoTek.

Hydrant handler

The handler is applicable for nearly all common hydrants through the exchange of the shaft adapter.

Compressor

The compact and quiet compressor, which is installed in a box of aluminium, feeds a NESSy or SnoTek with sufficient compressed air.

Snow and transport hoses

Our approved and high quality heavy-duty snow hose for low-pressure, high-pressure and lance-snowmaking-systems.

Base Frame Mobile

The installation of the base frame occurs before winter with a wheeled vehicle on the mounted wheels or with a snow groomer on the snow.

Slewing drive

The slewing drive is used for the optimal area width snowmaking.

Fully automatic system BTT

The fully automatic system, which is developed specifically for Bächler snowmakers, is characterised by the excellent adjustment with the optional components.
