Overview

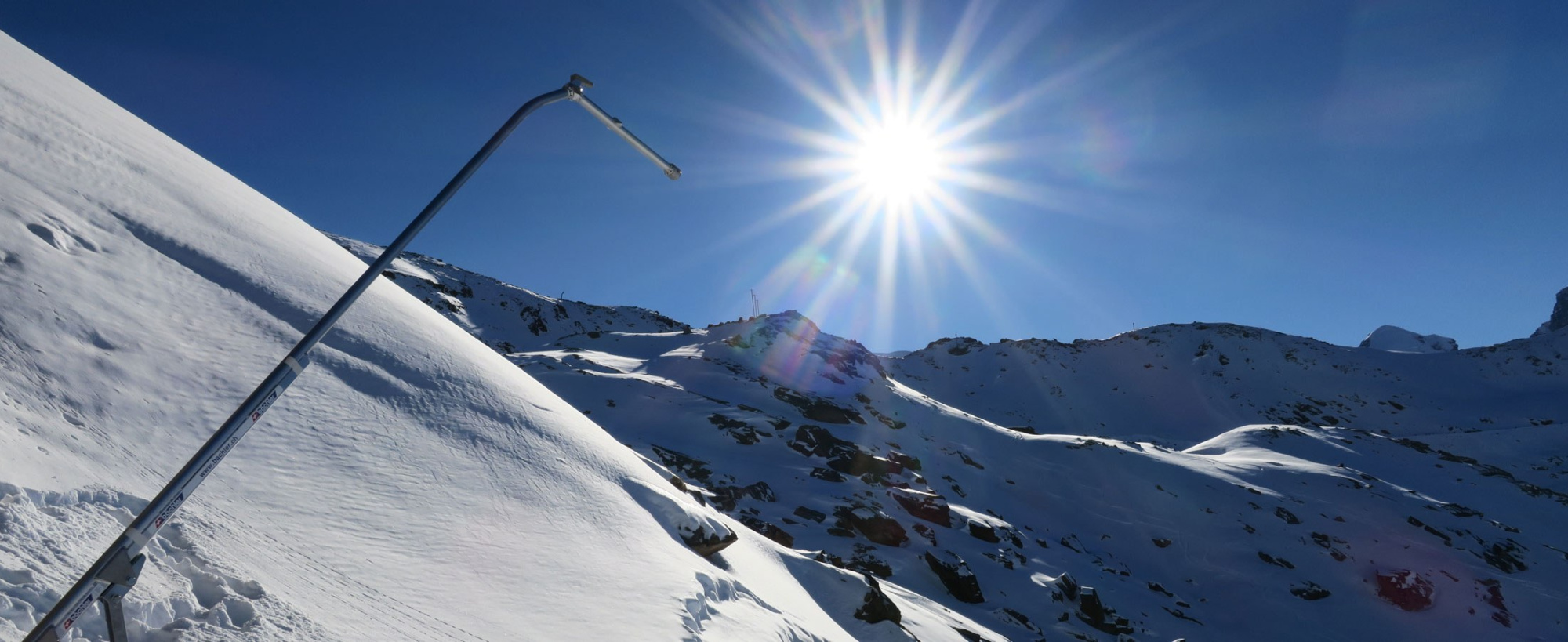

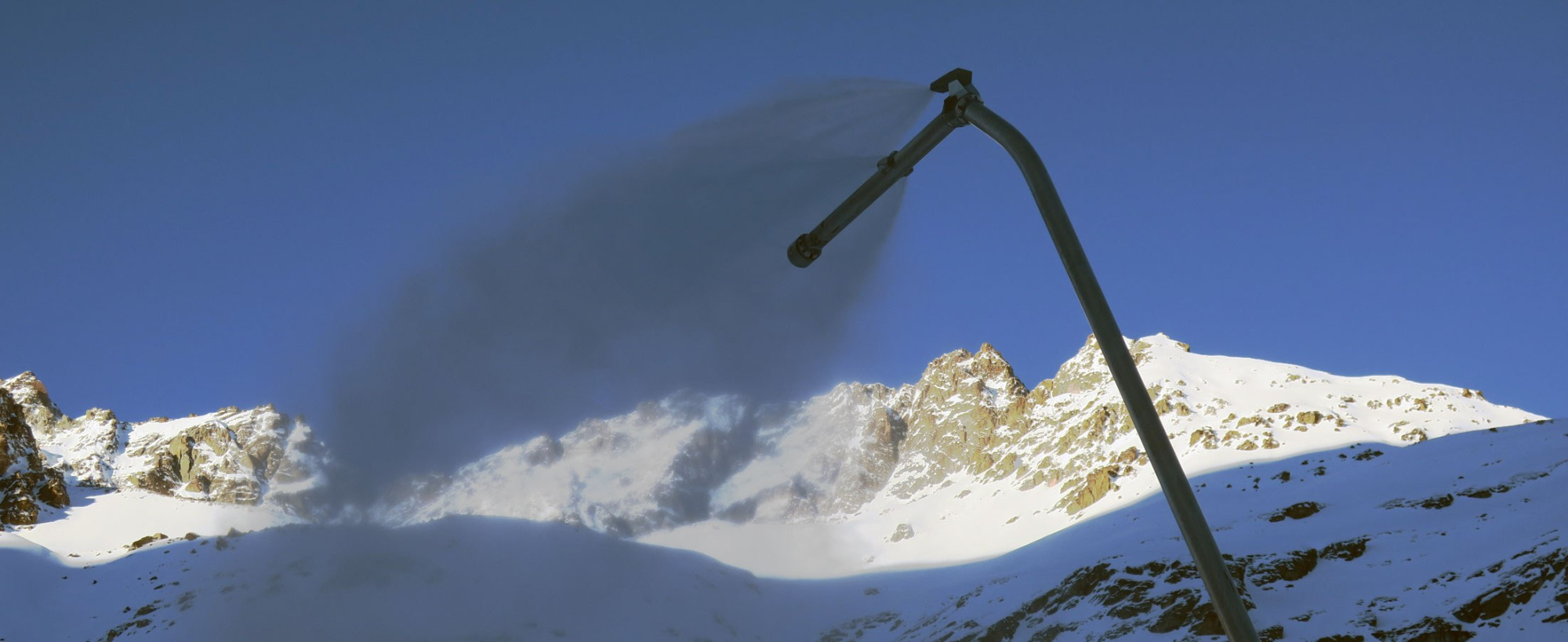

SnoTek TRACK

The focused one under the fun guns

SnoTek TRACK reaches throwing distances and snow amounts like low pressure snow guns with focused snow cover map

SnoTek TRACK is based on the established NESSy technology. The combination of the nozzle technology of NESSy and the patented nozzle technology of SnoTek results in throw width like low pressure snow guns and the same amount of snow. The SnoTek nozzle technology is practically wind-insensible. The version TRACK is available as a 1- or 2-steps lance and the ideal solution for small slopes, cross-country trails, toboggan runs and hiking trails.

  • Modular design
  • up to 166 l/min waterflow
  • Existing BÄCHLER snowguns can be upgraded easily

Technical data

Lance10m, 8.5m, 7m, 5m
Type of controlmanual, automatic, fully automatic
Snowing levels2
Weight incl. lifting device163 kg (at 10 m Lance length
Energy requirement0.8 kW (central air), 2.2 kW (Onboard-Compressor)
Air supplymax. 150 Nl/min at 10 bar
Water flow rate30 to 166 l/min
Working pressure20- 60 bar
Throw5 - 25 m
Noise level61.2 dB at 20 m
Fast change systemavailable, for optimized handling
Nozzle assembly3 water-nozzles, 1 V-Jet-Nozzle unite, 6 nucleator-nozzles
Start marginal temperature-1.5° WBT
Maximum performance from-4.5° WBT
Snowing performance4 to 22 m³/h
Specific snow weight400 - 450 kg/m³, adjustable
FoundationPit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversioneasily possible, for existing Bachler lances as well for other providers

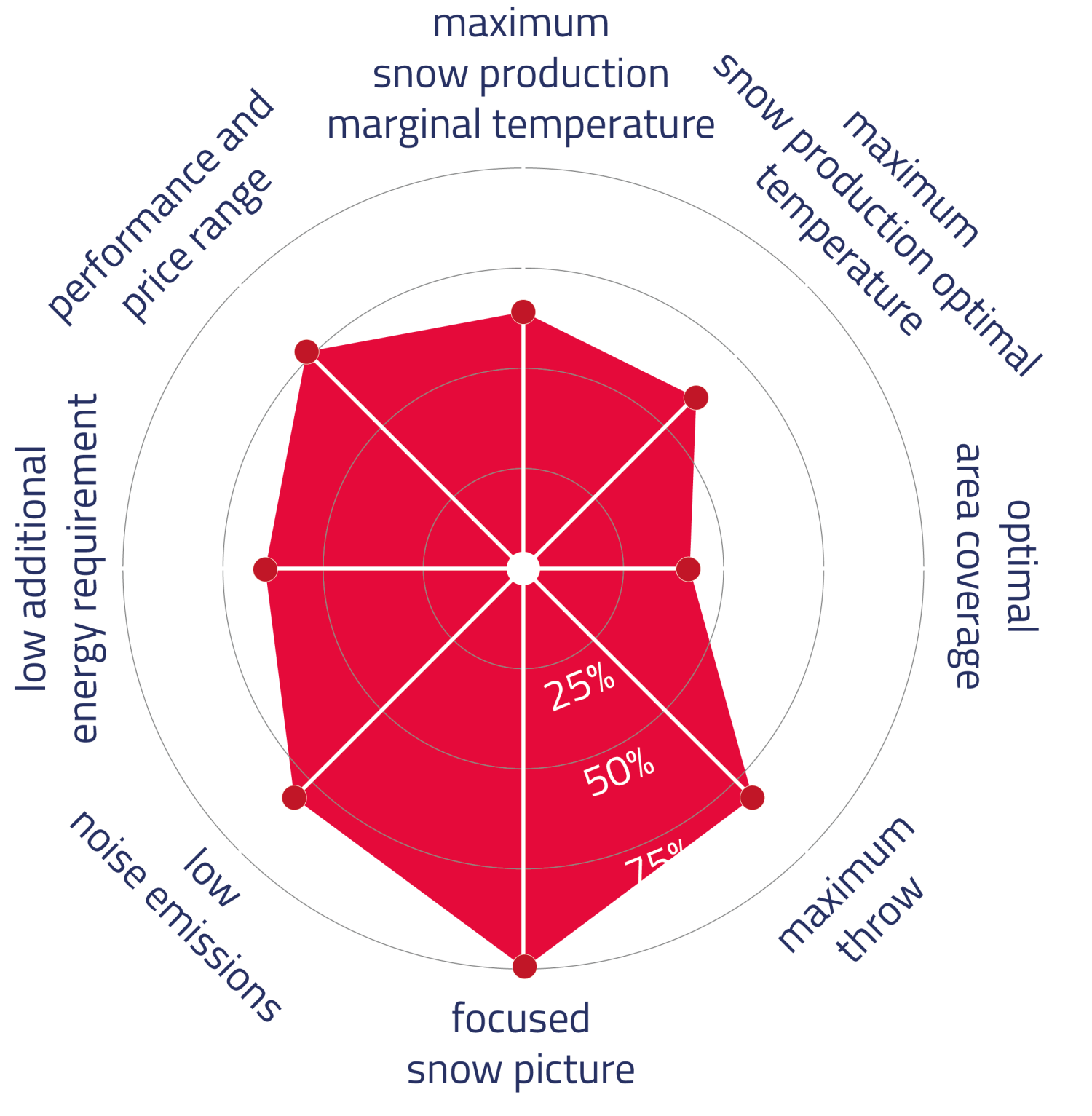

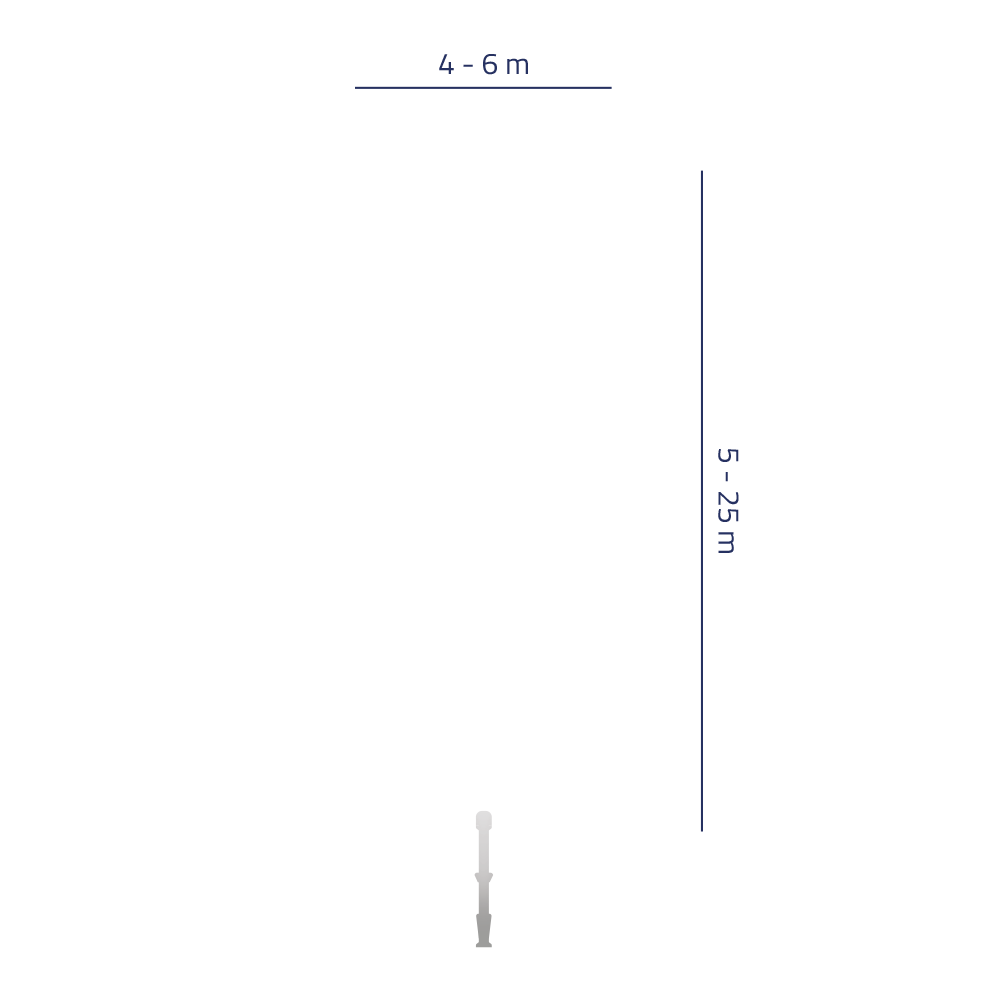

Snow cover map and Snowspider

Baechler Top Track SNOTEK TRACK 01 Baechler Top Track SNOTEK TRACK 02 EN

Suitable Supplies

Pit Solutions

The ingenious pit components can be assembled on your demand. Thereby it provides endless opportunities to design the system inexpensive and user-optimised.

Combi-Pitvale

The very compact combi-pitvalve with combined control of water and air in the basic is perfectly suited for use with NESSy/SnoTek.

Hydrant handler

The handler is applicable for nearly all common hydrants through the exchange of the shaft adapter.

Compressor

The compact and quiet compressor, which is installed in a box of aluminium, feeds a NESSy or SnoTek with sufficient compressed air.

Snow and transport hoses

Our approved and high quality heavy-duty snow hose for low-pressure, high-pressure and lance-snowmaking-systems.

Base Frame Mobile

The installation of the base frame occurs before winter with a wheeled vehicle on the mounted wheels or with a snow groomer on the snow.

Slewing drive

The slewing drive is used for the optimal area width snowmaking.

Fully automatic system BTT

The fully automatic system, which is developed specifically for Bächler snowmakers, is characterised by the excellent adjustment with the optional components.
