Overview

SnoTek TRACK TRIDUSA

The "marginal temperature miracle" from Bachler

The benchmark in marginal temperature performance

The Bachler SnoTek TRIDUSA achieves an incomparable performance in the marginal temperature range. Large area coverage and low additional energy requirement of 4.0 kW resp. 2.5 kW with central air are further impressive plus points.

Snow production in the marginal temperature range is often not economical. The “perfect snowmaking windows” are searched with a lot of effort and expensive technology. The Bachler SnoTek TRIDUSA pursues a different philosophy! Through the optimal use of the physical laws, every snowmaking window can be used. The performance sets new standards: Snow production is possible from -1.5 ° WBT with an impressive performance of 12 m3 snow at 20 bar and even 21 m3 at 60 bar of water pressure per hour.

The two-level lance tripled the snow production per snowing point combined with a large field coverage thanks to the three snow heads. The Bachler SnoTek TRIDUSA can be operated fully automatically in a central air network or with an onboard-compressor as a mobile version. Existing Bachler systems as well lances of other vendors can be easily converted.

Technical data

Lance lengths10m, 8.5m, 7m, 5m
Type of controlmanual, automatic, fully automatic
Snowing levels2
Weight incl. lifting device185 kg (at 10 m Lance length)
Energy requirement2.5 kW (central air), 4.0 kW (Onboard-Compressor)
Air supplymax. 450 Nl/min at 10 bar
Water flow rate90 up to 500 l/min
Working pressure20 - 60 bar
Throw5 - 30 m
Noise level61.2 dB at 20 m
Fast change system BTTavailable, for optimized handling
Nozzle assembly3 heads with each 3 water-nozzles, 1 V-Jet-Nozzle unit, 6 nucleator nozzles
Start marginal temperature-1.5° WBT
Maximum performance from-5° WBT
Snowing performance12 up to 67 m³/h
Specific snow weight400 - 450 kg/m³, adjustable
FoundationPit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversioneasily possible, for existing Bachler lances as well for other providers

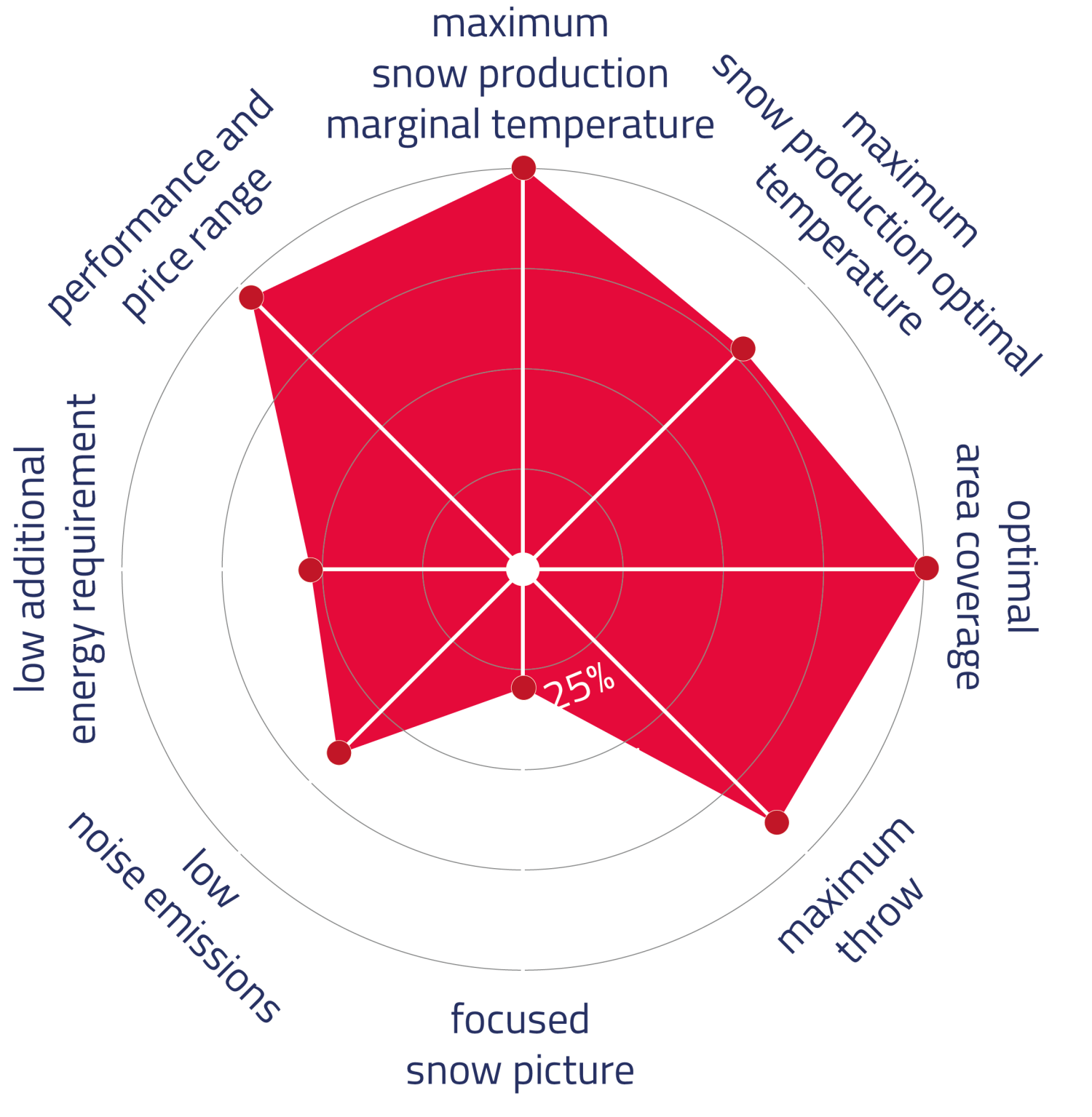

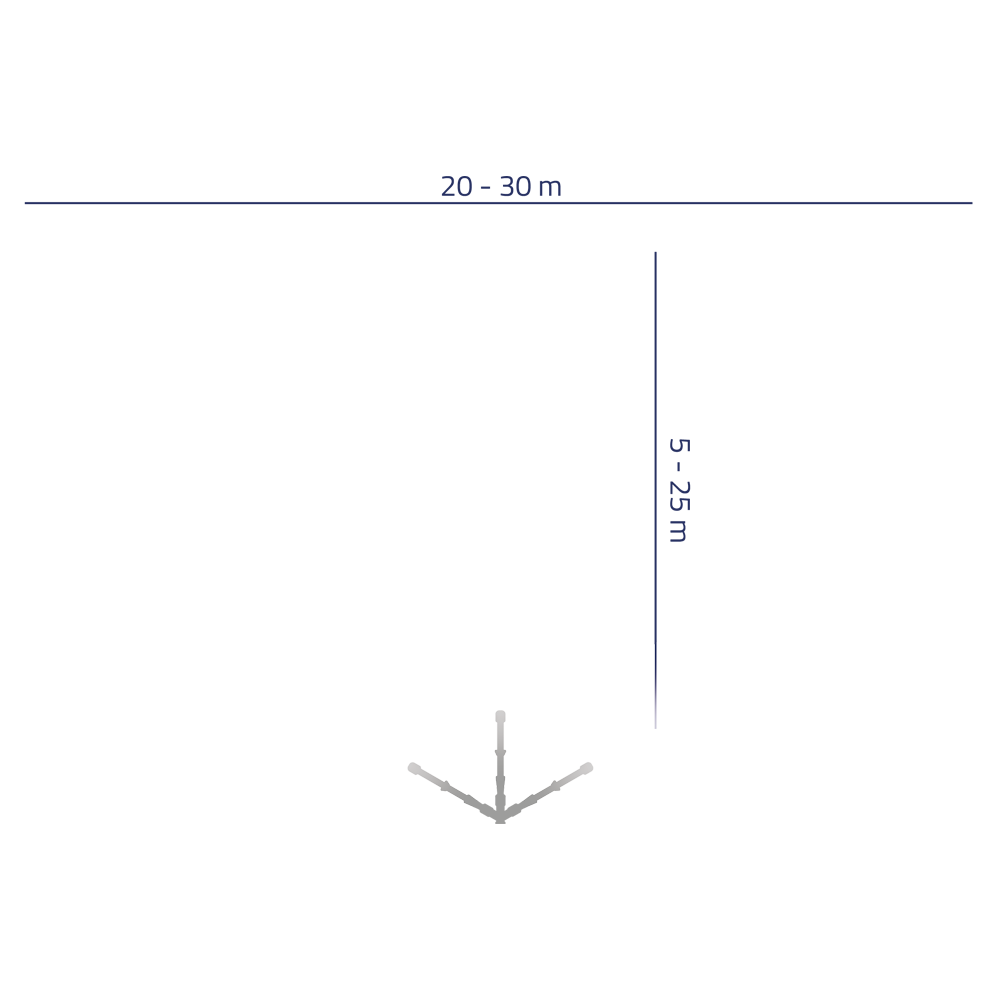

Snow cover map and Snowspider
