Overview

NESSy Short

New Energy-efficient Snowgun System - Short

The New Energy-efficient Snowgun System NESSy combines the latest scientific knowledge with well-established snowmaking technology.

  • 80% less air pressure than comparable lances
  • Low noise emissions
  • No additives required

NESSy Short has 2 instead of 4 snowing levels and achieves maximum performance from -5° WBT and produces up to 24 m3 per hour. As with the entire NESSy family, the limit temperature is -1.5° WBT.

Technical data Downloads Impressions Supplies

Technical data

Lance lengths10m, 8.5m, 7m, 5m
Type of controlmanual, automatic, fully automatic
Snowing levels2
Weight incl. lifting device152 kg (at 10 m Lance length)
Energy requirement0.8 kW (central air), 2.2 kW (Onboard-Compressor)
Air supplymax. 150 Nl/min at 10 bar
Water flow rate30 to 182 l/min
Working pressure15 - 60 bar

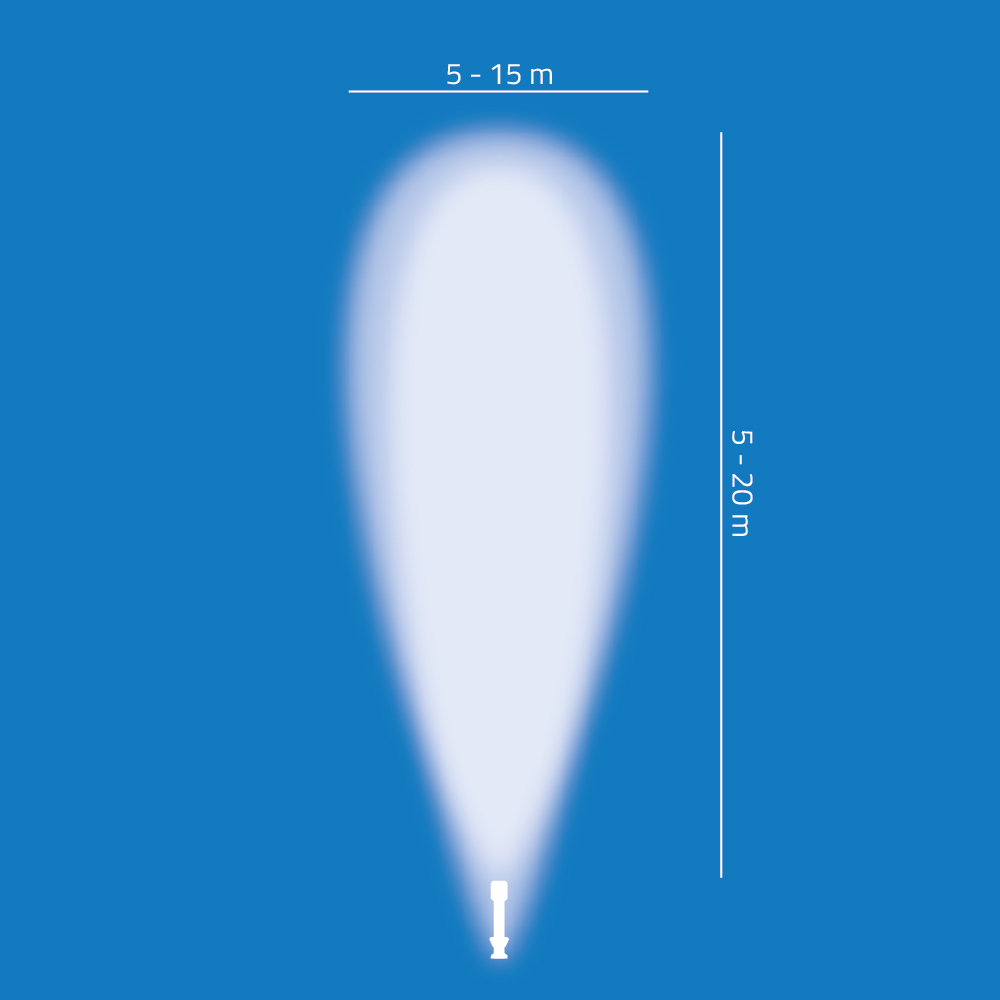

Throw5 - 20 m
Noise level61.2 dB at 20 m
Fast change system BTTavailable, for optimized handling

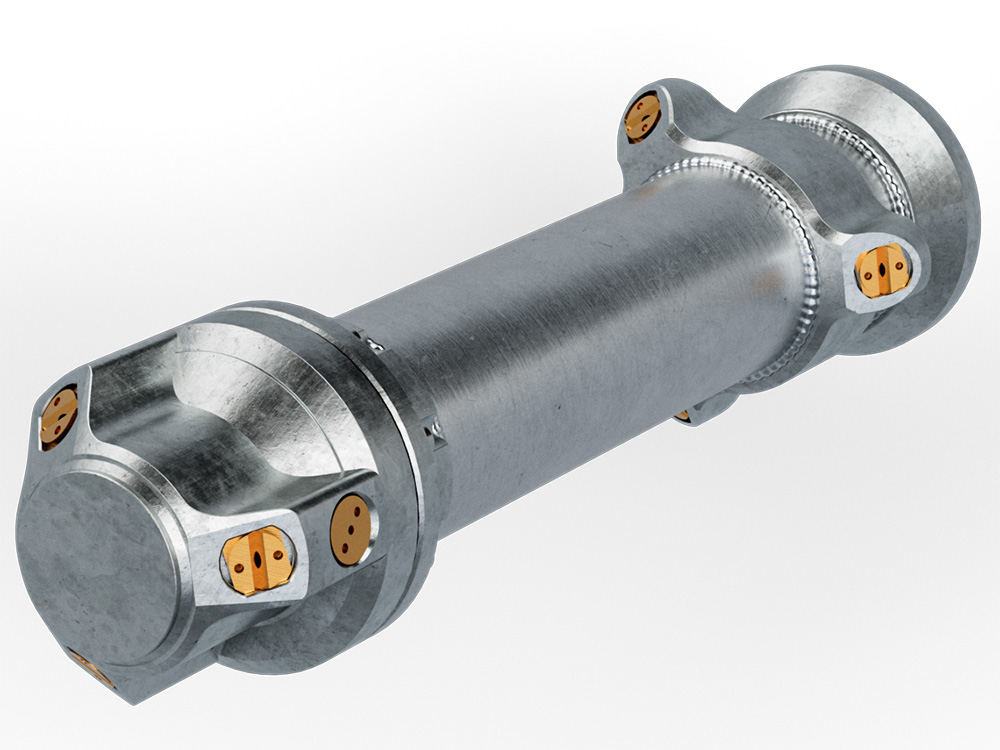

Nozzle assembly6 water- und 3 nucleator-nozzles
Start marginal temperature-1.5° WBT
Maximum performance from-5° WBT
Snowing performance4 up to 25 m³/h
Specific snow weight400 - 450 kg/m³, adjustable
FoundationPit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversioneasily possible, for existing Bachler lances as well for other providers

Downloads

NESSy Short Fact Sheet Snowmaking overview Product catalogue

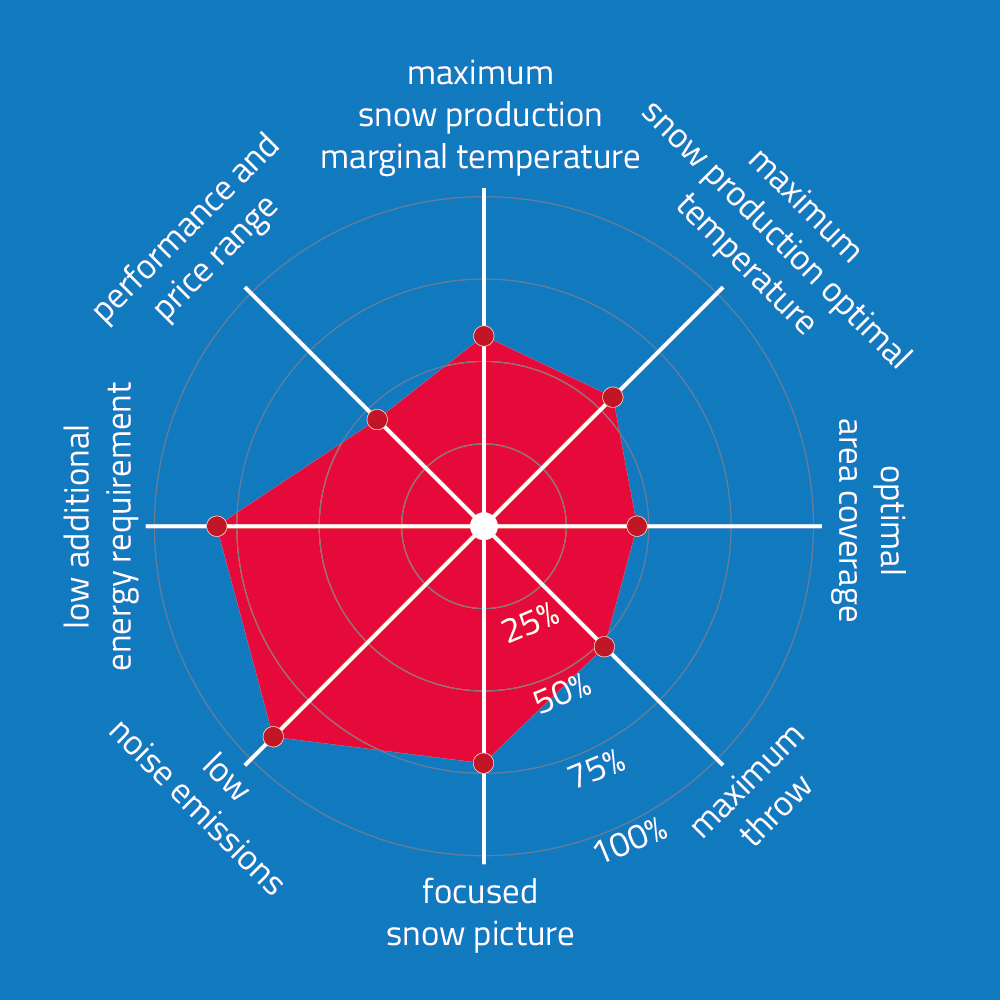

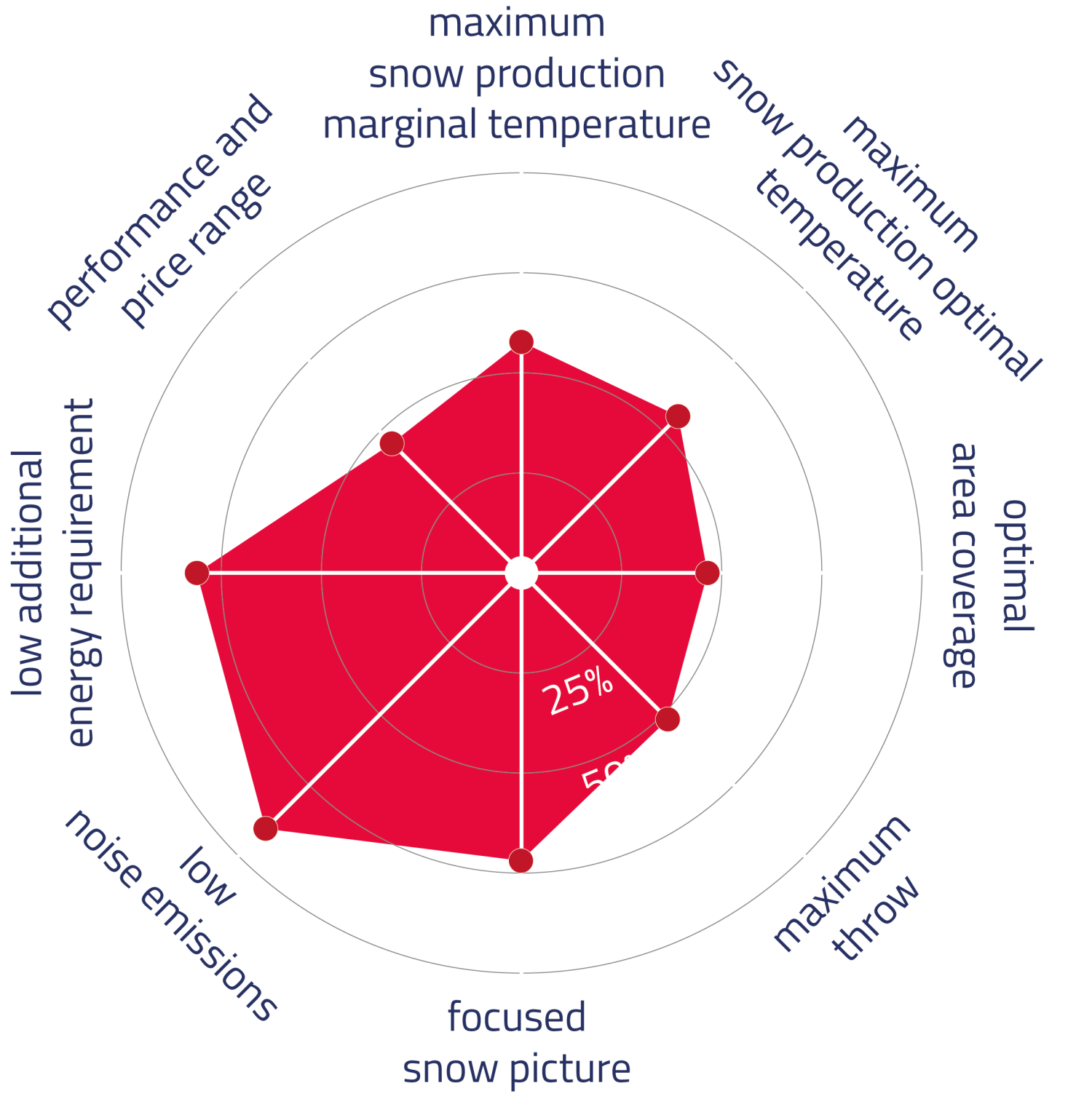

Snow cover map and Snowspider

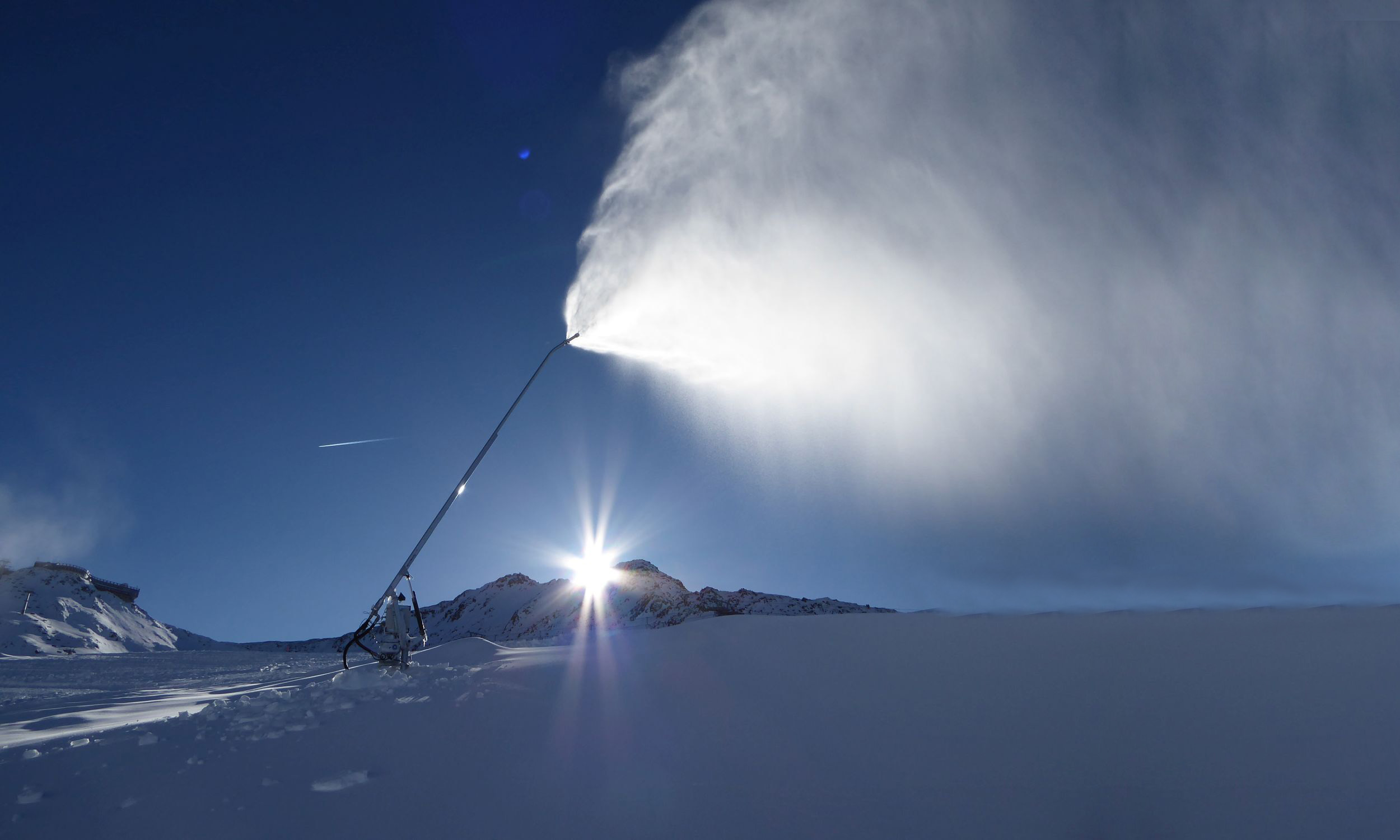

Baechler Top Track NESSY SHORT 01 Baechler Top Track NESSY SHORT 03 EN

Impressions

Baechler Top Track NESSY SHORT 05
Baechler Top Track NESSY SHORT 06
