Overview

NESSy ZeroE

Loads of snow without energy

NESSy ZeroE snows even in the limit temperature range, from –2.5° wet-bulb temperature, at absolutely no electricity and additional energy.

The compressed air required for ice crystal formation comes directly from the patented snow producer itself. An ejector pump produces an air/watermixture subse-quently split individually into compressed air and water. This is why NESSy ZeroE offers nearly the same good snowing properties as NESSy and SnoTek even in limit temperature ranges.

NESSy ZeroE is the ideal supplement for the existing lances manufactured by Bächler Top Track AG for use where either no compressed air or else no power is available. The lance has a modular structure and is compatible with NESSy and SnoTek. 3 to 8 additional steps are integrated so that suf-ficientsnow can be produced even in colder temperatures. Noise emissions are extremely low giving NESSy ZeroE yet another advantage.

Technical data

Lance lengths10m, 8.5m, 7m, 5m
Type of controlmanual, automatic
Snowing levels4
Weight incl. lifting device182 kg (at 10 m Lance length)
Energy requirement0 kW
Air supply0 Nl/min (own generation)
Water flow rate56 to 217 l/min
Working pressure20 - 60 bar
Throw5 - 20 m
Noise level61.2 dB at 20 m
Fast change system BTTavailable, for optimized handling
Nozzle assembly29 + 6 water- and 3 nucleator-nozzles
Start marginal temperature-2.5° WBT
Maximum performance from-7° WBT
Snowing performance8 up to 29 m³/h
Specific snow weight400 - 450 kg/m³, adjustable
FoundationPit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversioneasily possible, for existing Bachler lances as well for other providers

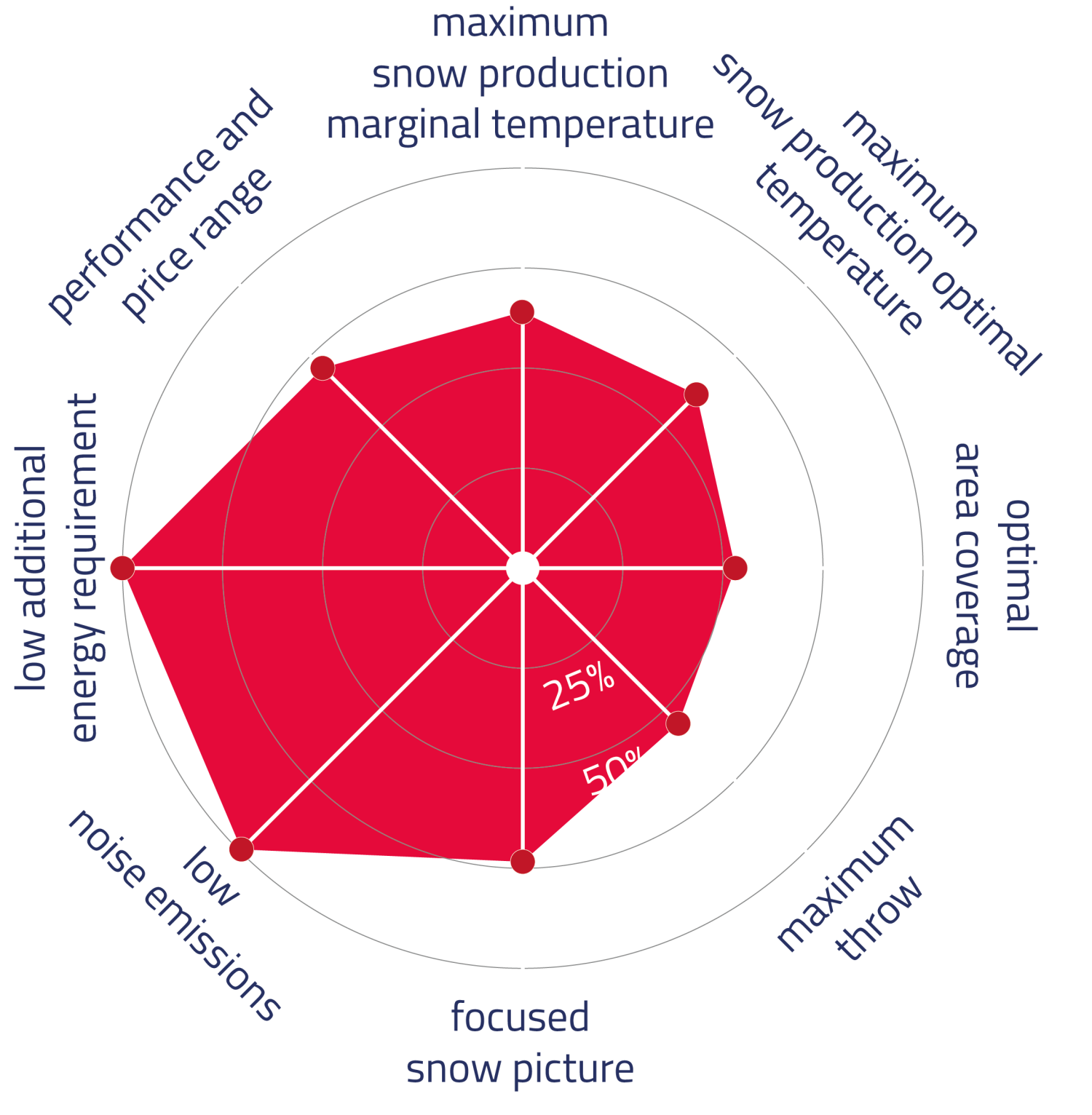

Snow cover map and Snowspider

Baechler Top Track NESSY ZEROE 01 Baechler Top Track NESSY ZEROE 03 EN

Suitable supplies

Pit Solutions

The ingenious pit components can be assembled on your demand. Thereby it provides endless opportunities to design the system inexpensive and user-optimised.

Hydrant handler

The handler is applicable for nearly all common hydrants through the exchange of the shaft adapter.

Snow and transport hoses

Our approved and high quality heavy-duty snow hose for low-pressure, high-pressure and lance-snowmaking-systems.

Base Frame Mobile

The installation of the base frame occurs before winter with a wheeled vehicle on the mounted wheels or with a snow groomer on the snow.

Slewing drive

The slewing drive is used for the optimal area width snowmaking.

Fully automatic system BTT

The fully automatic system, which is developed specifically for Bächler snowmakers, is characterised by the excellent adjustment with the optional components.
