Overview

SnoTek ET MEDUSA

The most powerful snow lance from Bachler

The license for maximum snow production up to 124 m3 per hour

The SnoTek builds on the proven NESSy technology (see NESSy datasheet). The combination of NESSy nozzle technology with the patented nozzle technology of SnoTek results in throwing distances similar to low-pressure snow-makers and with equal amounts of snow. Furthermore the SnoTek nozzle technology is virtually insensitive to wind and throws the snow exactly where you want it. SnoTek has eight snowing levels which enable you to always produce the desired quality of snow.

The SnoTek builds on the proven NESSy technology (see NESSy datasheet). The combination of NESSy nozzle technology with the patented nozzle technology of SnoTek results in throwing distances similar to low-pressure snow-makers and with equal amounts of snow. Furthermore the SnoTek nozzle technology is virtually insensitive to wind and throws the snow exactly where you want it. SnoTek has eight snowing levels which enable you to always produce the desired quality of snow.

Given the increasingly scarce time-frames for artificial snow production, the productivity of the snow making system is crucial!

This is the point where the double-head lance comes into its own. For example: At -2.5°WBT the lance can handle 4 l/s of water ( at 30 bar). This produces approximately 32 m3 of snow per hour. Already at around -8°WBT the lance can be fully activated which, depending on the pressure, results in a production of up to 124 m3 (at 60 bar) of snow per hour!

Technical data

Lance lengths10m, 8.5m, 7m, 5m
Type of controlmanual, automatic, fully automatic
Snowing levels8
Weight incl. lifting device182 kg (at 10 m Lance length)
Energy requirement1.6 kW (central air), 2.2 kW (Onboard-Compressor)
Air supplymax. 300 Nl/min at 10 bar
Water flow rate60 to 922 l/min
Working pressure20 - 60 bar
Throw10 - 35 m
Noise level61.2 dB at 20 m
Fast change system BTTavailable, for optimized handling
Nozzle assembly2 heads with each 3 water-nozzles, 1 V-Jet-Nozzle unite, 6 nucleator-nozzles
Start marginal temperature-1.5° WBT
Maximum performance from-8° WBT
Snowing performance8 up to 124 m³/h
Specific snow weight400 - 450 kg/m³, adjustable
FoundationPit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversioneasily possible, for existing Bachler lances as well for other providers

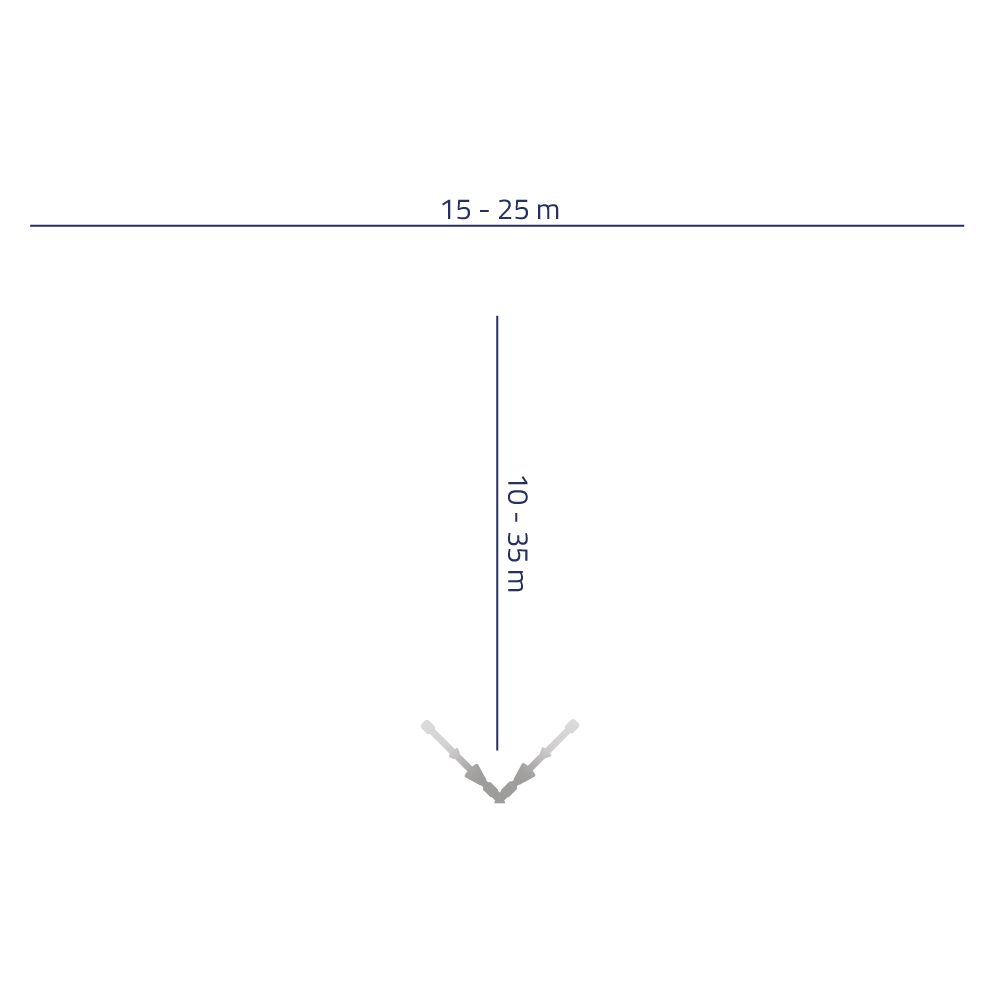

Snow cover map and Snowspider

Baechler Top Track SNOTEK ET MEDUSA 01 Baechler Top Track SNOTEK ET MEDUSA 03 EN

Suitable supplies

Pit Solutions

The ingenious pit components can be assembled on your demand. Thereby it provides endless opportunities to design the system inexpensive and user-optimised.

Combi-Pitvale

The very compact combi-pitvalve with combined control of water and air in the basic is perfectly suited for use with NESSy/SnoTek.

Hydrant handler

The handler is applicable for nearly all common hydrants through the exchange of the shaft adapter.

Compressor

The compact and quiet compressor, which is installed in a box of aluminium, feeds a NESSy or SnoTek with sufficient compressed air.

Snow and transport hoses

Our approved and high quality heavy-duty snow hose for low-pressure, high-pressure and lance-snowmaking-systems.

Base Frame Mobile

The installation of the base frame occurs before winter with a wheeled vehicle on the mounted wheels or with a snow groomer on the snow.

Slewing drive

The slewing drive is used for the optimal area width snowmaking.

Fully automatic system BTT

The fully automatic system, which is developed specifically for Bächler snowmakers, is characterised by the excellent adjustment with the optional components.
