SnoTek TRINITY MEDUSA

Low energy consumption, high snow output and double performance

Large area coverage combined with high performance

The Bachler SnoTek TRINITY MEDUSA forms the link between the focused snow pattern of a SnoTek TRACK MEDUSA and the enormous snow output of the SnoTek ET MEDUSA. Strong performance in the marginal temperature range and high performance at lower temperatures and this, as typical for Bachler, with extremely low additional energy consumptions.

The 4-stage double-head snow lance covers a high snow output even in the marginal temperature range from -1.5° wet bulb temperature. From approx. -7.7° WBT, the fourth snow level can be switched on, with which up to 77 m3/h of snow is possible at 60 bar water pressure. The low energy requirement of 1.6 kW with central air supply and 2.2 kW with onboard compressor is another strong argument for the SnoTek TRINITY MEDUSA.

The wide snow pattern enables a large area to be covered with a long throw of up to 30 meters. A SnoTek TRINITY MEDUSA shows its strengths where the available water quantities are not sufficient for a SnoTek ET MEDUSA and four snow levels are enough.

Technical data

Lance lengths10m, 8.5m, 7m, 5m
Type of controlanual, automatic, fully automatic
Snowing levels4
Weight incl. lifting device178 kg (at 10 m Lance length)
Energy requirement1.6 kW (central air), 2.2 kW (Onboard-Compressor)
Air supplymax. 300 Nl/min at 10 bar
Water flow rate60 to 568 l/min
Working pressure20 - 60 bar
Throw5 - 30 m
Noise level61.2 dB at 20 m
Fast change system BTTavailable, for optimized handling
Nozzle assembly2 heads with each 3 water-nozzles, 1 V-Jet-Nozzle unit, 6 nucleator nozzles
Start marginal temperature-1.5° WBT
Maximum performance from-7.7° WBT
Snowing performance8 up to 77 m³/h
Specific snow weight400 - 450 kg/m³, adjustable
FoundationPit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversioneasily possible, for existing Bachler lances as well for other providers

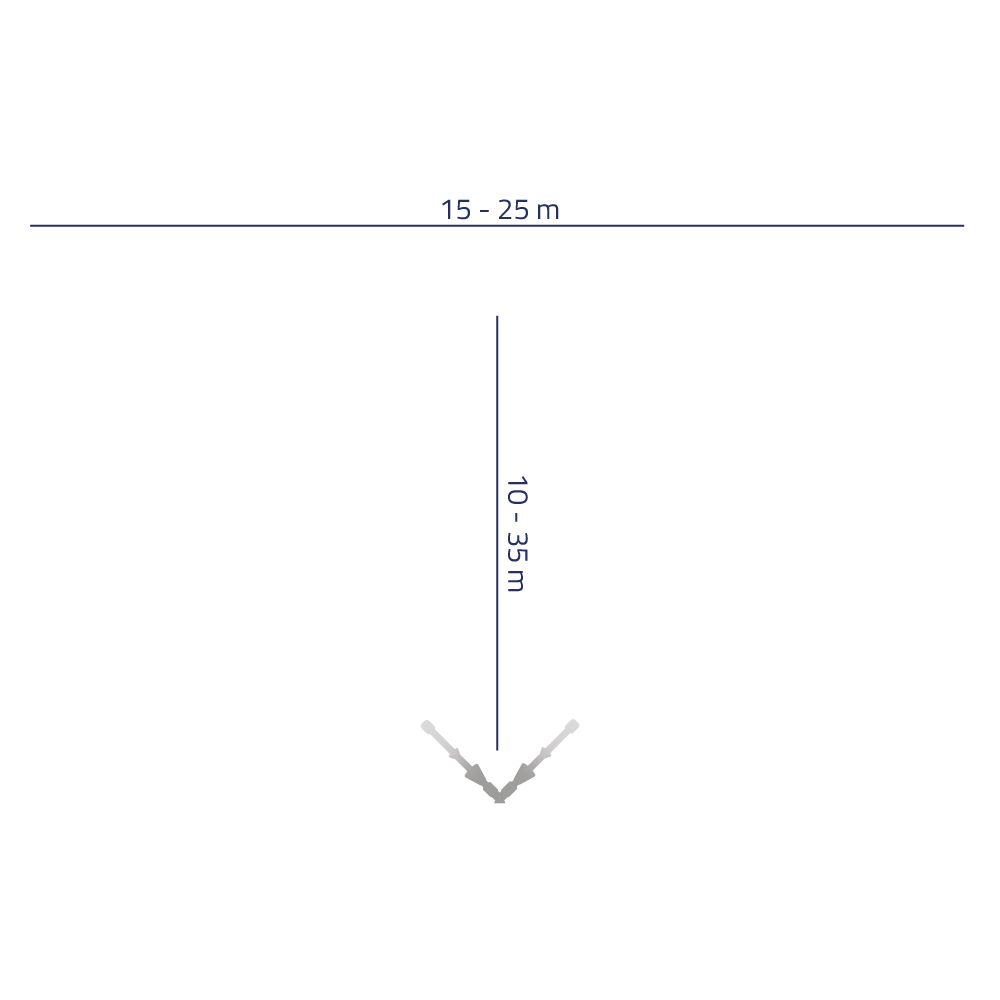

Snow cover map and Snowspider

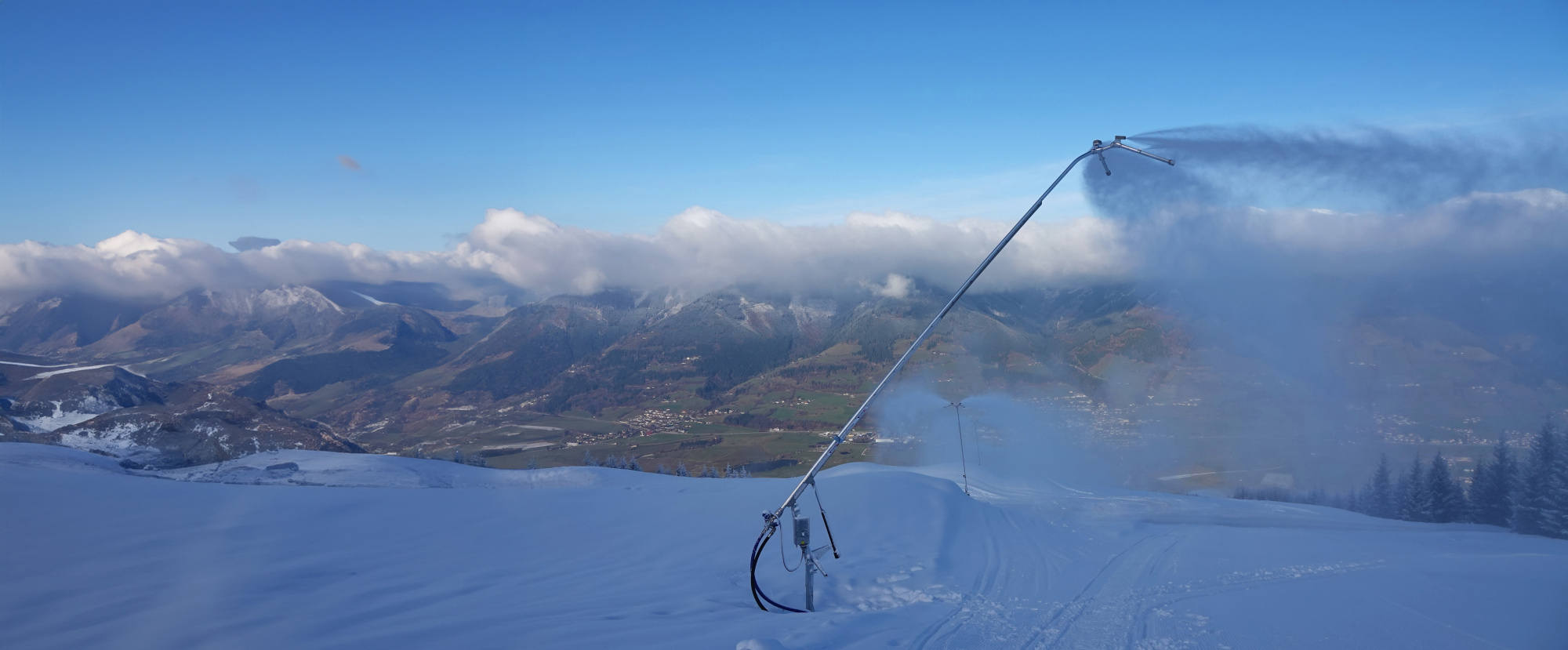

Baechler Top Track SNOTEK TRINITY MEDUSA 01 Baechler Top Track SNOTEK TRINITY MEDUSA 03 EN

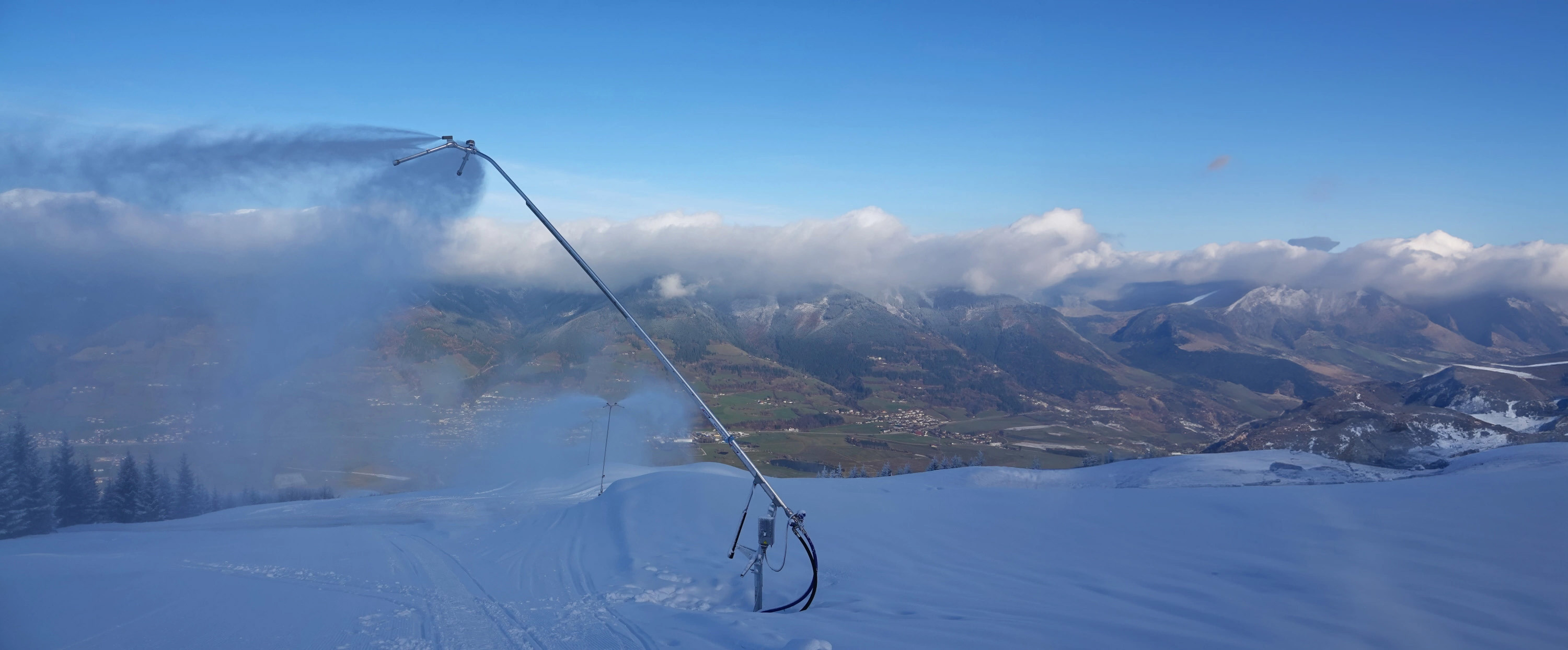

Impressions
