SnoTek TRACK MEDUSA

The SnoTek TRACK MEDUSA closes the gap between the 1-head and 3-head TRACK variant and combines the focused throw with a larger area coverage. The alternative if the full performance of the SnoTek TRIDUSA is not required with identical parameters in the marginal temperature range.

The SnoTek TRACK MEDUSA offers an exciting variant if a comprehensive and focused snow output is required with the lowest possible scatter loss. Identical parameters as the 3-head class-leading snow lance SnoTek TRIDUSA with minimum lower performance and a slightly lower entry-level price.

The 2-steps lance reaches a water flow up to 338 l/min and can produce up to 46 m3 of snow per hour. The snow production starts at -1.5° wet-bulb temperature and the full performance is available form -4.5° WBT. Set up as a „stand-alone“ solution with an on-board compressor and water pump or integrated into an existing snowmaking concept the Bachler SnoTek TRACK MEDUSA offers both options. Snow right there where you need it.

Technical data

Lance lengths10m, 8.5m, 7m, 5m
Type of controlmanual, automatic, fully automatic
Snowing levels2
Weight incl. lifting device175 kg (at 10 m Lance length)
Energy requirement1.6 kW (central air), 2.2 kW (Onboard-Compressor)
Air supplymax. 300 Nl/min at 10 bar
Water flow rate60 to 333 l/min
Working pressure20 - 60 bar
Throw5 - 25 m
Noise level63 dB at 20 m
Fast change system BTTavailable, for optimized handling
Nozzle assembly2 heads with each 3 water-nozzles, 1 V-Jet-Nozzle unite, 6 nucleator-nozzles
Start marginal temperature-1.5° WBT
Maximum performance from-4.5° WBT
Snowing performance8 up to 45 m³/h
Specific snow weight400 - 450 kg/m³, adjustable
FoundationPit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversioneasily possible, for existing Bachler lances as well for other providers

Snow cover map and Snowspider

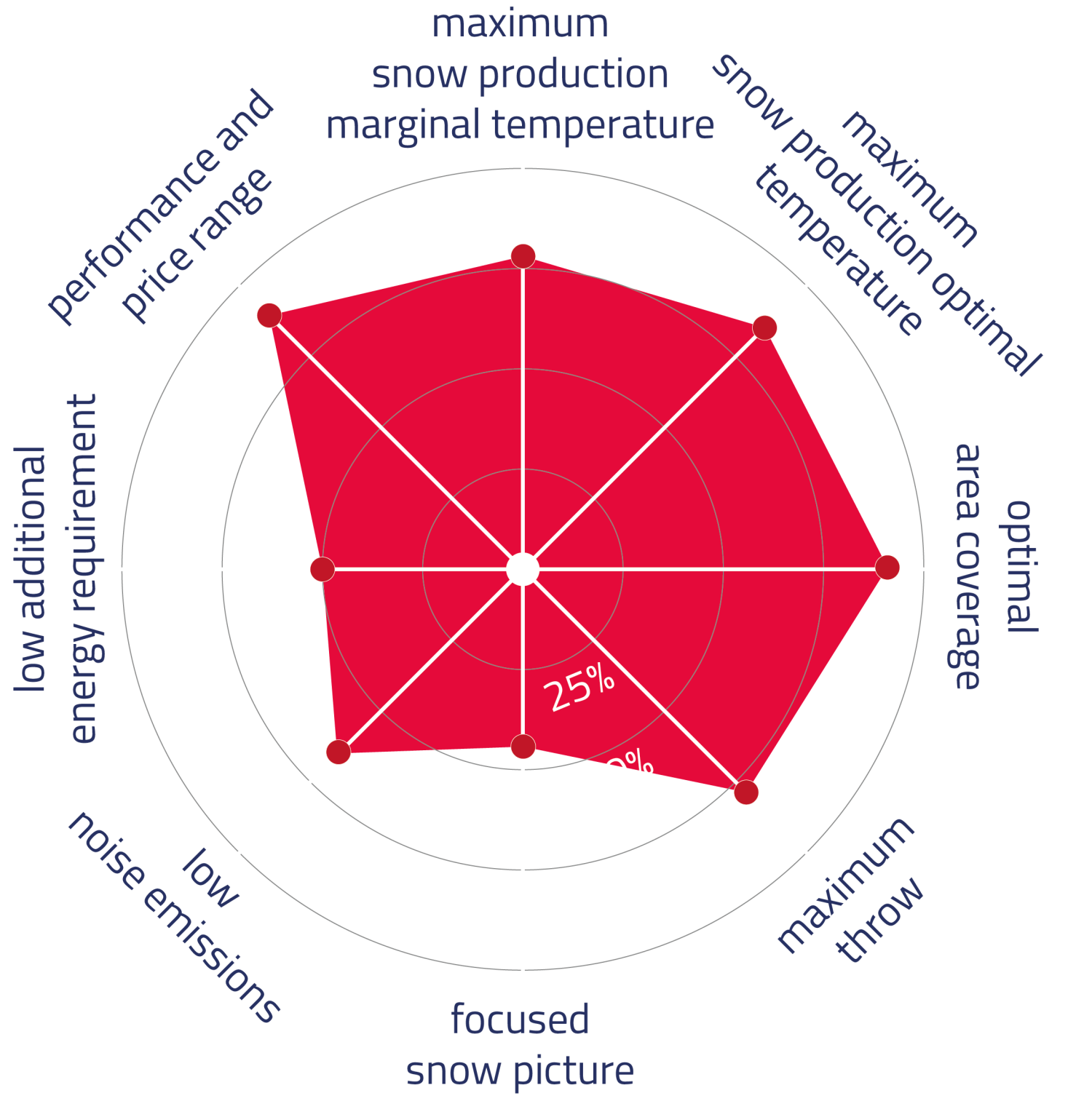

BTT Sno Tek TRINITY MEDUSA Schneibild Web 1000x1000 Sno Tek TRINITY MEDUSA Smartsnow EN Web
