The slewing drive is used for the optimal area width snowmaking. By a permanent slewing of the snowmaker the snow cools down better. Thereby you reach a higher snowquality.
The slewing drive is applied predominantly by SnoTek, but also by NESSy. The slewing drive is mounted between the standpipe and MAV. The slewing range can be triggered mecanically optional on 90°, 65° or 50°.

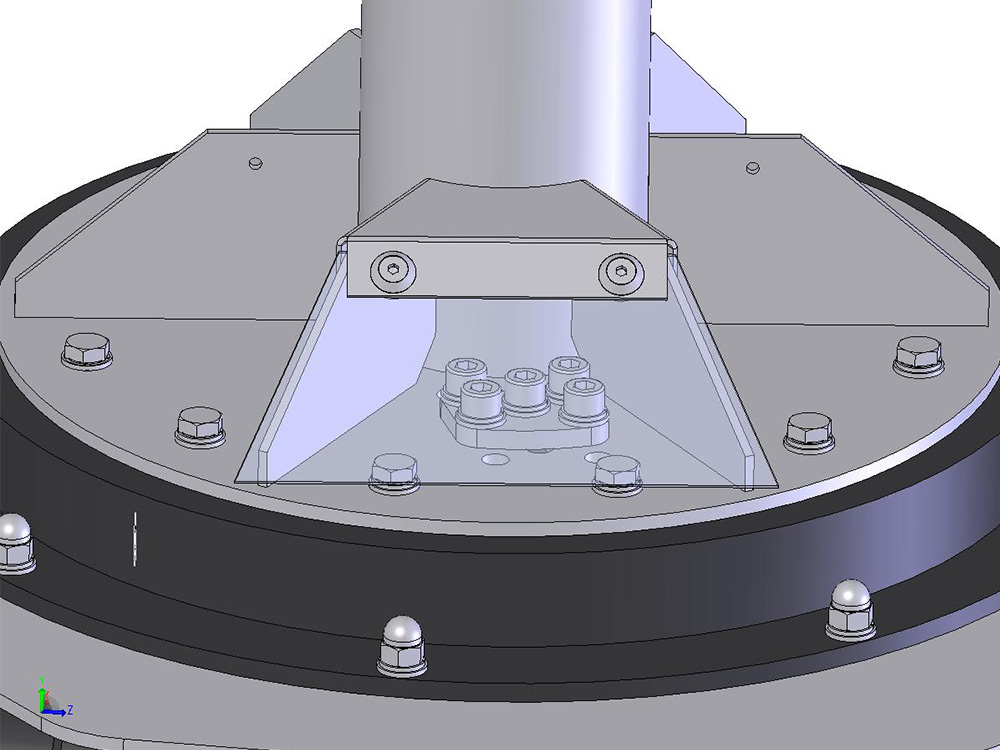

The slewing drive is actuated by a twin screw drive and an eccentric shaft with driving plate. That is to say: 1 rotation on the drive output results in 1 pivoting bidirectional, regardless of which pivoting angle is adjusted.
Technical data
| Connection voltage: |
230 V / 50 Hz |
| Engine power: |
370 W |
| Engine speed: |
1400 min-1 |
| Gear ratio: |
1:1800 |
| Output speed: |
0.78 min-1 |
| Swing time: |
47 s (bidirectional) |
| Swing range: |
90°, 65° or 50° |
| Cable: |
3m UV-resistant PUR-connection cable for 230 V (without plug) |
