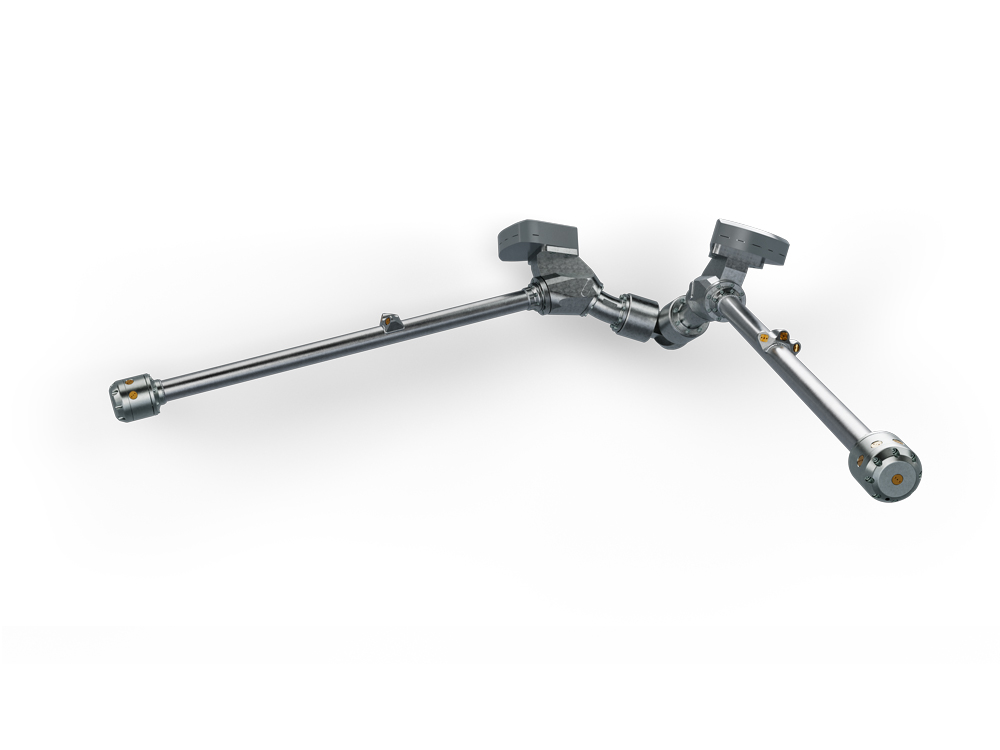

SnoTek ET MEDUSA

Ãœbersicht

SnoTek ET MEDUSA

The most powerful snow lance from Bachler


The license for maximum snow production up to 124 m3 per hour

The SnoTek builds on the proven NESSy technology (see NESSy datasheet). The combination of NESSy nozzle technology with the patented nozzle technology of SnoTek results in throwing distances similar to low-pressure snow-makers and with equal amounts of snow. Furthermore the SnoTek nozzle technology is virtually insensitive to wind and throws the snow exactly where you want it. SnoTek has eight snowing levels which enable you to always produce the desired quality of snow.

The SnoTek builds on the proven NESSy technology (see NESSy datasheet). The combination of NESSy nozzle technology with the patented nozzle technology of SnoTek results in throwing distances similar to low-pressure snow-makers and with equal amounts of snow. Furthermore the SnoTek nozzle technology is virtually insensitive to wind and throws the snow exactly where you want it. SnoTek has eight snowing levels which enable you to always produce the desired quality of snow.

Given the increasingly scarce time-frames for artificial snow production, the productivity of the snow making system is crucial!

This is the point where the double-head lance comes into its own. For example: At -2.5°WBT the lance can handle 4 l/s of water ( at 30 bar). This produces approximately 32 m3 of snow per hour. Already at around -8°WBT the lance can be fully activated which, depending on the pressure, results in a production of up to 124 m3 (at 60 bar) of snow per hour!


Technical data

Lance lengths 10m, 8.5m, 7m, 5m
Type of control manual, automatic, fully automatic
Snowing levels 8
Weight incl. lifting device 182 kg (at 10 m Lance length)
Energy requirement 1.6 kW (central air), 2.2 kW (Onboard-Compressor)
Air supply max. 300 Nl/min at 10 bar
Water flow rate 60 to 922 l/min
Working pressure 20 - 60 bar
Throw 10 - 35 m
Noise level 63 dB at 20 m
Fast change system BTT available, for optimized handling
Nozzle assembly 2 heads with each 3 water-nozzles, 1 V-Jet-Nozzle unite, 6 nucleator-nozzles
Start marginal temperature -1.5° WBT
Maximum performance from -8° WBT
Snowing performance 8 up to 124 m3/h
Specific snow weight 400 - 450 kg/m3, adjustable
Foundation Pit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversion easily possible, for existing Bachler lances as well for other providers

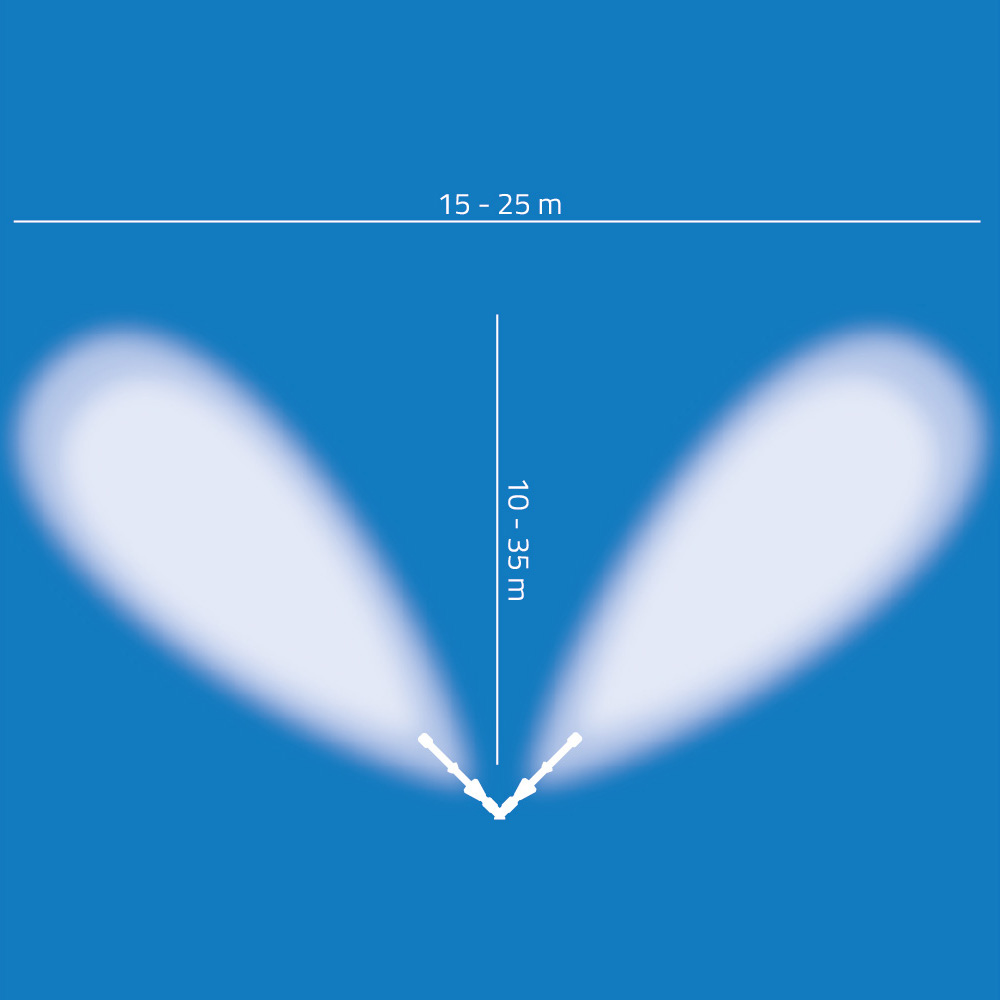

Snow cover map and Snowspider

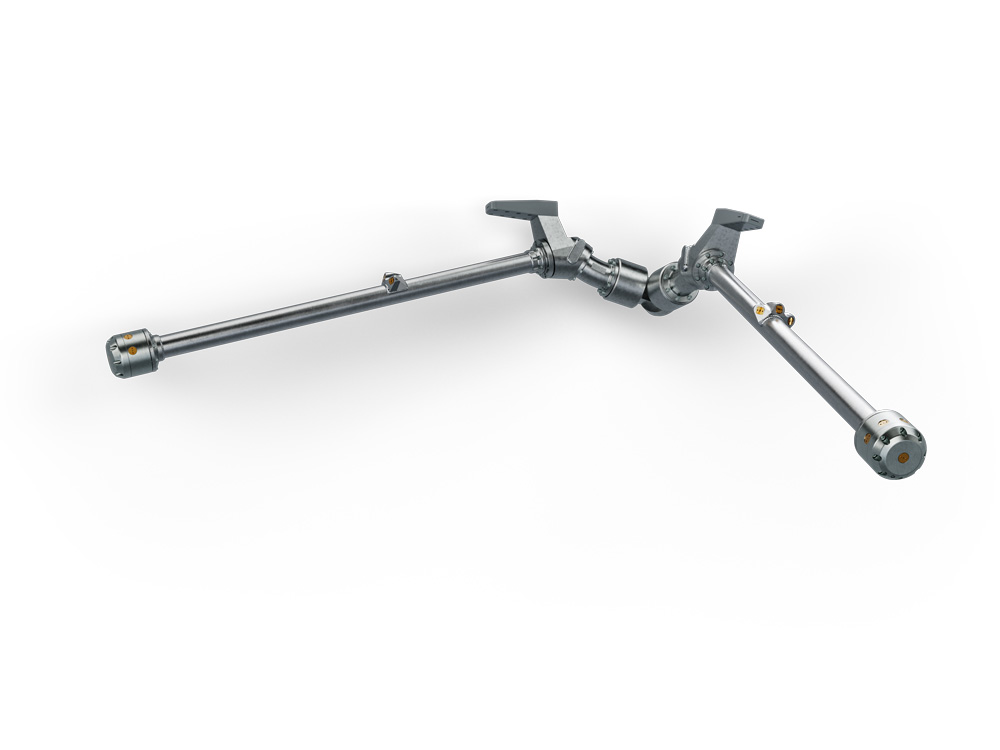

Specialversion SnoTek TRACK MEDUSA

The SnoTek TRACK MEDUSA closes the gap between the 1-head and 3-head TRACK variant and combines the focused throw with a larger area coverage. The alternative if the full performance of the SnoTek TRIDUSA is not required with identical parameters in the marginal temperature range.

The SnoTek TRACK MEDUSA offers an exciting variant if a comprehensive and focused snow output is required with the lowest possible scatter loss. Identical parameters as the 3-head class-leading snow lance SnoTek TRIDUSA with minimum lower performance and a slightly lower entry-level price.

The 2-steps lance reaches a water flow up to 338 l/min and can produce up to 46 m3 of snow per hour. The snow production starts at -1.5° wet-bulb temperature and the full performance is available form -4.5° WBT. Set up as a „stand-alone“ solution with an on-board compressor and water pump or integrated into an existing snowmaking concept the Bachler SnoTek TRACK MEDUSA offers both options. Snow right there where you need it.


Technical data

Lance lengths 10m, 8.5m, 7m, 5m
Type of control manual, automatic, fully automatic
Snowing levels 2
Weight incl. lifting device 160 kg (at 10 m Lance length)
Energy requirement 1.4 kW (central air), 2.2 kW (Onboard-Compressor)
Air supply max. 300 Nl/min at 10 bar
Water flow rate 60 to 340 l/min
Working pressure 15 - 60 bar
Throw 5 - 20 m
Noise level 61.2 dB at 20 m
Fast change system BTT available, for optimized handling
Nozzle assembly 2 heads with each 3 water-nozzles, 1 V-Jet-Nozzle unite, 6 nucleator-nozzles
Start marginal temperature -1.5° WBT
Maximum performance from -4.5° WBT
Snowing performance up to 46 m3/h
Specific snow weight 400 - 450 kg/m3, adjustable
Foundation Pit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversion easily possible, for existing Bachler lances as well for other providers

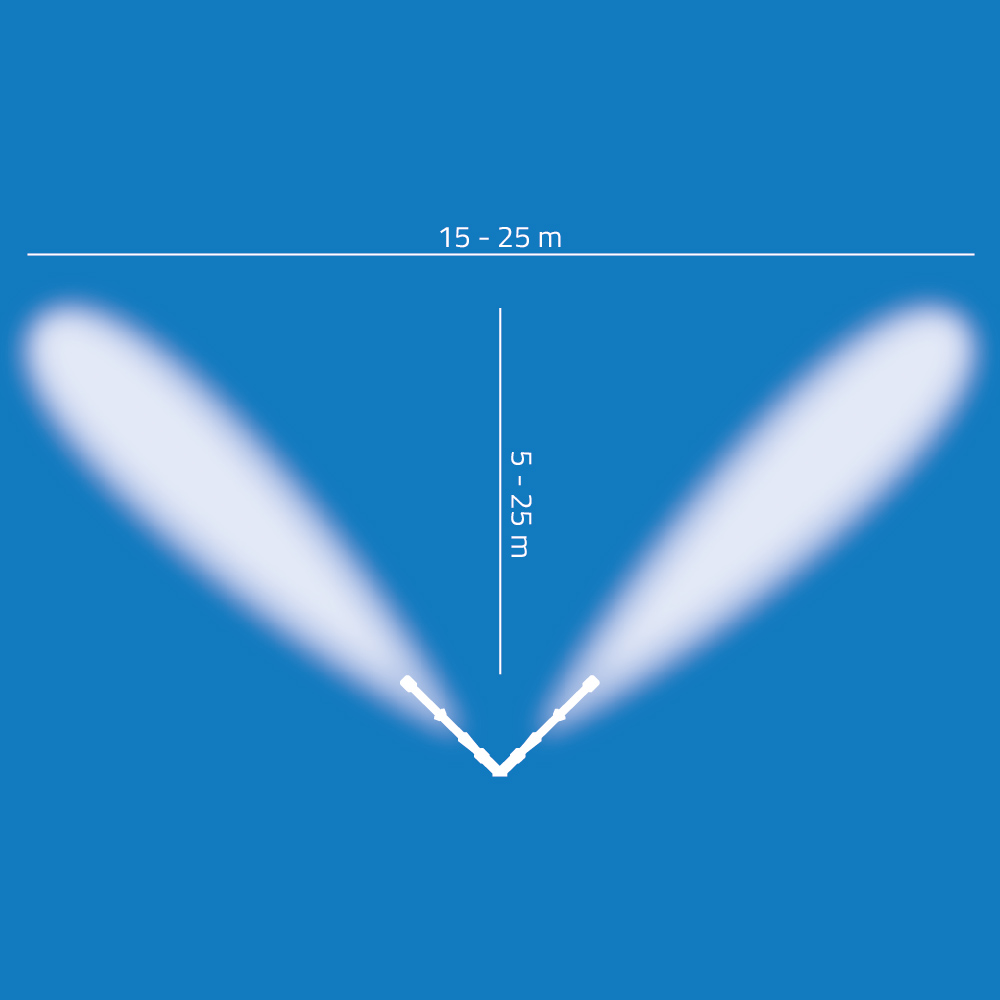

Snow cover map and Snowspider

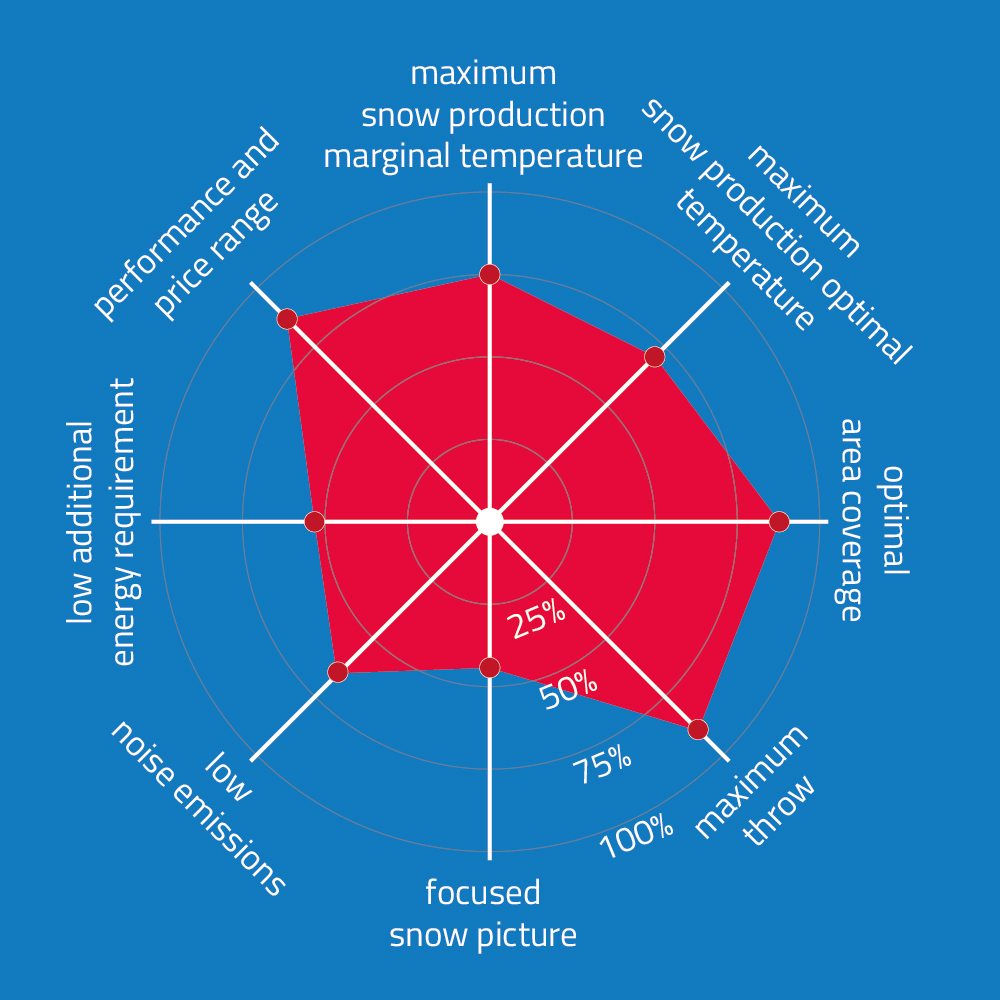

SnoTek TRACK MEDUSASnoTek TRACK MEDUSA Snowspider
